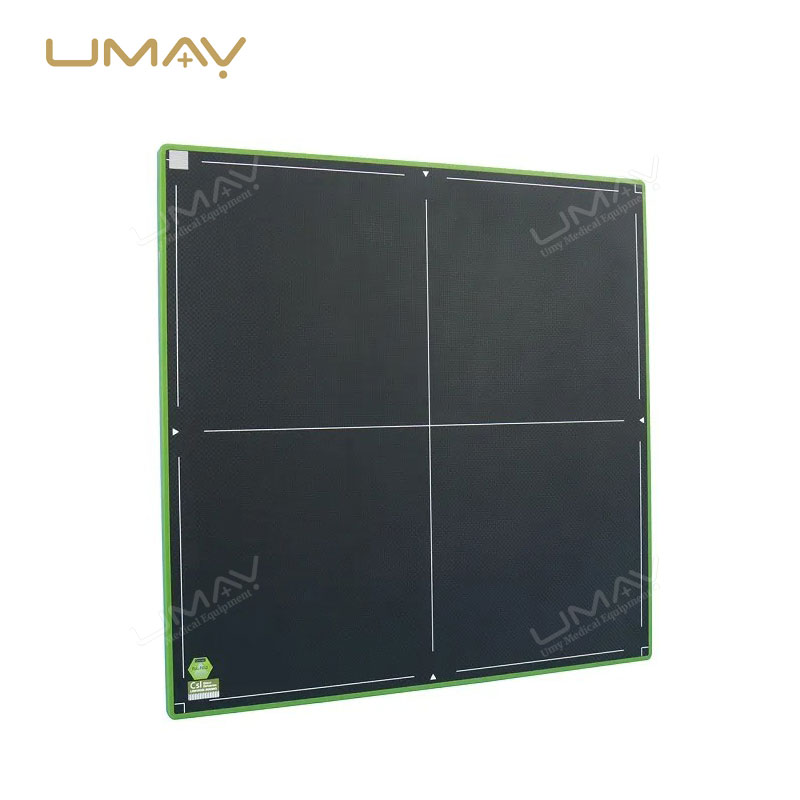

Wireless Digital Flat Panel DR Detector for High-Quality Medical Imaging
SKU: UMY-XM-034
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-034
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The wireless digital flat panel DR detector offers advanced imaging technology for a wide range of medical diagnostic applications. This detector provides high-resolution digital radiography (DR) images with the convenience of wireless connectivity, improving workflow efficiency in hospitals and clinics. Its lightweight and compact design allows for easy integration into existing X-ray systems, making it an ideal choice for upgrading to modern, efficient imaging solutions. The wireless design ensures greater flexibility and ease of use, contributing to faster and more accurate patient diagnoses.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Sensor | |
| Scintillator | Direct Deposit CsI:TI |
| Active Area | 433.5 × 433.5 mm |
| Pixel Array | 2816 × 2816 |
| Pixel Pitch | 154 µm |
| Image Quality | |
| Limiting Resolution | 3.3 lp/mm |
| MTF | ~70% (@ 1 lp/mm), ~40% (@ 2 lp/mm), ~22% (@ 3 lp/mm) |
| DQE (@ RQA5, 27 µGy) | ~65% (@ 0 lp/mm), ~20% (@ 3 lp/mm) |
| Sensitivity | ~0.62 ct/nGy |
| Response Non-linearity | < ± 0.5% |
| Maximum Linear Dose | 95 µGy |
| Dark Noise | ~8 nGy |
| Dynamic Range | ~82 dB |
| A/D Conversion | 16 bits |
| Communication | |
| Communication Interface | Gigabit Ethernet, 2.4/5 GHz, 300 Mbps |
| Image Acquisition Time | 2-3 s (wired), 4-5 s (wireless) |
| Environmental | |
| Operating | |
| #NAME? | 5°C – 35°C |
| – Humidity Range (Non-condensing) | 30% – 75% RH |
| Storage | |
| #NAME? | -20°C – 55°C |
| #NAME? | 10% – 90% RH |
| Mechanical | |
| Dimension | 460 × 460 × 15 mm |
| Weight | 4.1 kg |
| Housing Material | Carbon fiber front, high-strength aluminum alloy back |
| Weight Bearing | 100 kg @ 40 mm, 150 kg @ full facade |
| Power | |
| Maximum Power | <8W (standby) / 20W (operating) |
| Power Supply | 100 – 240 V AC |
| Frequency | 50/60 Hz |
| Battery | 3260 mAh, 14.8 V |
| Regulatory | |
| FDA | K172581 |
| CE | HD 60118633 0001 |
