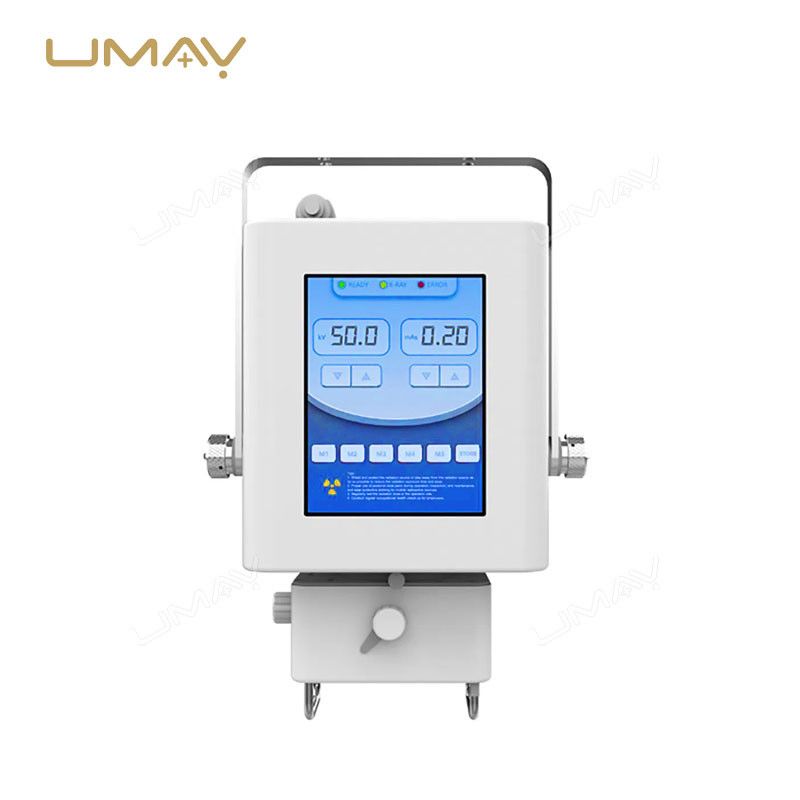

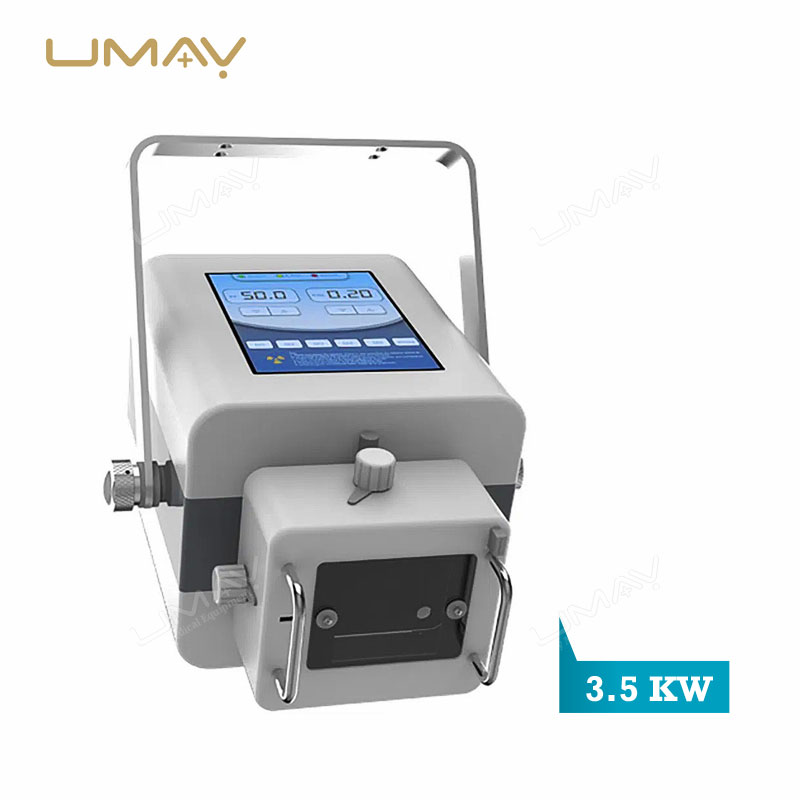

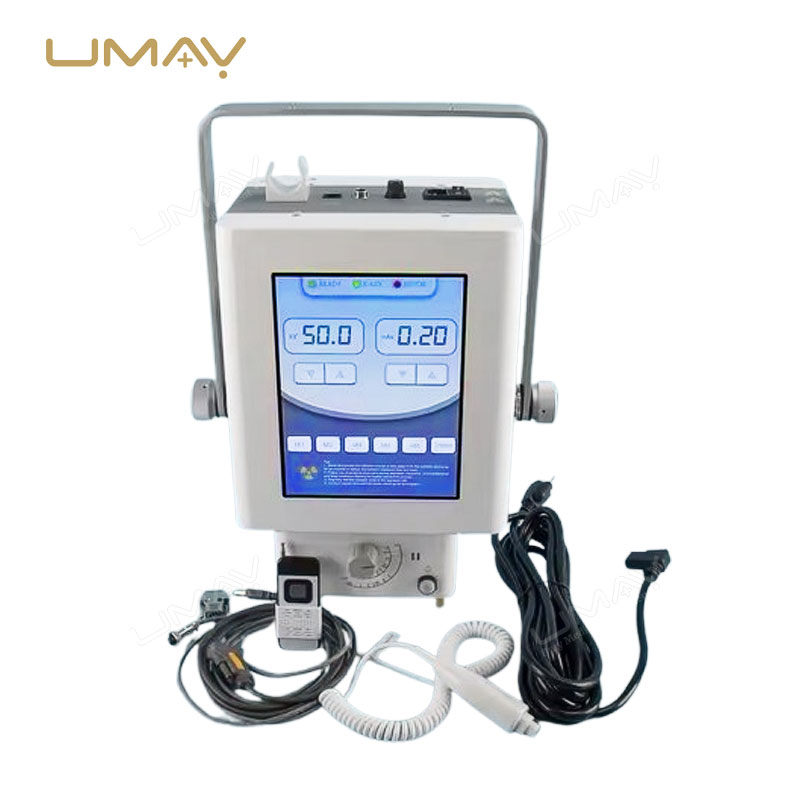

Portable High-Frequency X-ray Machine with Touch Screen – 3.5kW for Hospital Use
SKU: UMY-XM-031
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-031
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The high-frequency portable X-ray machine with a 5kW power output and touch screen offers advanced imaging capabilities for hospital environments. Ideal for emergency, bedside, and outpatient diagnostics, this digital X-ray system delivers precise, high-resolution images with reduced radiation exposure. Its portable design allows for easy movement between rooms, enhancing workflow efficiency and patient care. The user-friendly touch screen interface simplifies operation, ensuring fast and accurate results in busy hospital settings.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Maximum Output Power | 3.5kW |
| Power Capacity | 70kV @ 50mA |
| Photography kV Range | 40-70kV, 40-90kV, 40-110kV |
| Photography mA Range | 50mA, 40mA, 32mA |
| mAs Range | 0.32-200mAs |
| Exposure Time Range | 0.01-4s |
| Inverter Frequency | ≥30kHz |
| Input Power Type | 220V ±10%, 50Hz/60Hz or 110V ±10%, 50Hz/60Hz |
| Host Size | 370mm × 300mm × 240mm (including collimator) |
| Weight | 21kg |
| Inverter Mode | PWM (Pulse Width Modulation) |
