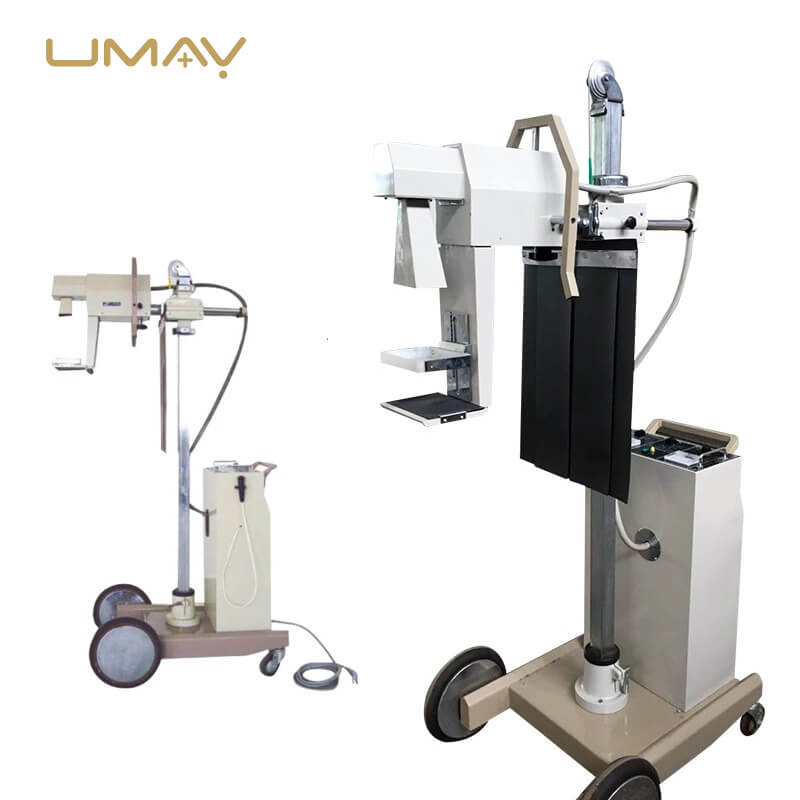

High-Performance Digital Mammography Machine for Hospital Breast Screening
SKU: UMY-XM-MA01
Brand: Umy
MOQ: 1
Origin: China
A mammogram is a highly specialized and crucial medical imaging technique that utilizes low-dose X-ray technology to produce precise and detailed images of breast tissue. This advanced procedure is an essential component in the proactive early detection and accurate diagnosis of any abnormal growths or masses, which could potentially indicate the presence of breast cancer. As a leading and highly effective diagnostic tool, early detection through mammography dramatically increases the likelihood of successful treatment outcomes, offering a promising path to a complete cure when breast cancer is caught at its earliest, most treatable stage.
Quick Info.
- SKU NO.: UMY-XM-MA01
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electricity
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 30000 Sets/Year
A mammogram is a specialized, low-dose X-ray imaging technique utilized for capturing images of the breast to detect and diagnose any abnormal lumps or masses in breast tissue. It represents one of the most effective tools for early detection of breast cancer. Early detection increases the likelihood of successful treatment, potentially leading to a complete cure when the cancer is in its initial stage.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| System Overview (Basic Requirement) | Clinical application: dedicated to human breast tissue X-ray photography to obtain tissue images for breast disease diagnosis and breast cancer screening; |
| Frame Structure | Rack structure: The C arm is developed and produced by manufacturer. (Possess all independent intellectual property rights) |
| C arm rotation range: -155°~ +195° | |
| C arm vertical movement range: 630 ~ 1440mm; | |
| C arm can be locked anywhere in the full stroke | |
| The display on the rack can display the current position and the position information to be photographed, and has a one-key switch function to the preset position; | |
| FID: 660mm; | |
| High Voltage Generator Component | Maximum output power: 5kW |
| Output voltage range: 20 ~ 40 kV | |
| Output current range: 10 ~ 160 mA | |
| Loading time range: 0.005s ~ 10s | |
| Current time product range: 0.5 ~ 560mAs; | |
| With exposure control system, support for one-key exposure or hand brake exposure | |
| X-ray Tube Component | Double speed rotating anode |
| Nominal tube voltage: 40 KV; | |
| Anode heat capacity: 300 kHU; | |
| Anode rotating speed: 10000 rpm | |
| Anode material: molybdenum | |
| Nominal focus size: small focus 0.1mm, large focus 0.3mm; | |
| Flat Panel Detector Component | Imaging material: amorphous silicon |
| Imaging size: 240 × 300mm; | |
| Conventional spatial resolution: 7.01 p/mm; | |
| Pixel matrix: 2816 × 3584mm pixels; | |
| A/D output: 16 bits; | |
| Cooling method: fan cooling | |
| Weight: 3.5 kg | |
| Pixel size: 85 μm | |
