Digital X-ray Machine with Radiography C-Arm for Comprehensive Patient Care
SKU: UMY-XM-CA01
Brand: Umy
MOQ: 1
Origin: China
The X-ray machine features an adjustable arm, which provides flexibility in its operation. There are various components such as an X-ray generator and detector. The X-ray machine features an adjustable arm, which provides flexibility in its operation. There are various components such as an X-ray generator and detector.
Quick Info.
- SKU NO.: UMY-XM-CA01
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 300 Sets/Year
The X-ray machine features an adjustable arm, which provides flexibility in its operation. There are various components such as an X-ray generator and detector. The X-ray machine features an adjustable arm, which provides flexibility in its operation. There are various components such as an X-ray generator and detector.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| HF generator | 120kV,5kW ,40kHz |
| Fluoroscopy mode 40~120kV 0.5~5mA | |
| (KV manual and automatic); | |
| Fluoroscopy mode | Pulsd fluoroscopy 40~120kV 0,5-5mA |
| Boost fluoroscopy 40~120kV 5~10mA; | |
| Photography 40~120kV 1~250mAs | |
| X- ray tube | Dual-focus Rotating anode: 0.3mm/0.6mm |
| Image intensifier | Three fields of vision 9, 6, 4.5 French Thales Brand |
| CCD camera | CCD camera, Japanese Watt Brand, 360° rotation |
| Recursive Noise Reduction | |
| Frame freezing | |
| Image system | Multi-frame image storage |
| Image conversing and rotating | |
| Screen display with image comparison | |
| Mechanical motion specifications | Verticaltravel: 0-400mm |
| Horizontaltravel: 0~200mm | |
| Rotation about horizontal axis: ±180° | |
| Distance of focal spot to image generator(SID): 1000mm | |
| Depth in arm≥650mm | |
| Mobile stand : 1800mm*800mm*1850mm | |
| C-arm dimension | Image system: 750mm*530mm*1680mm |
| High resolution CCD camera: 1set | |
| x-ray generator: 1set | |
| 9” image intensifier: 1set | |
| Standard configuration | image processing system: 1set |
| LCD high definition display: 2 sets | |
| Mobile stand : 1set | |
This is a customed X-ray Machine that client from Spain seeks.

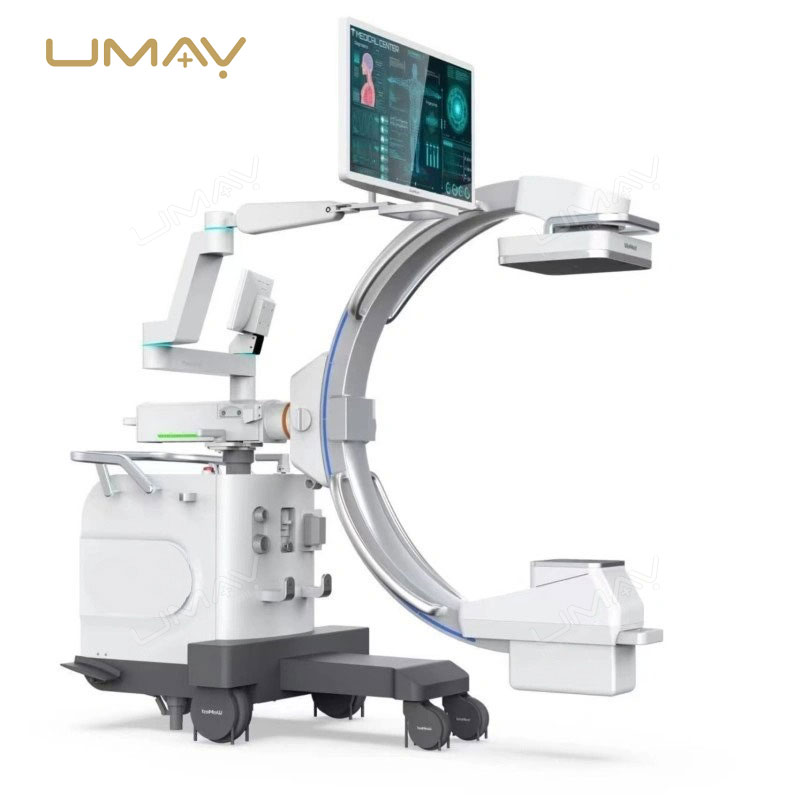

The control panel, resembling a small computer with a display, is on the left side of the device, and an arm with the X-ray head is on the upper right.
A modern medical imaging system designed with user convenience and advanced technology in mind, offering faster image acquisition, reduced radiation doses, and high image quality.
