Digital Veterinary X-ray System for Animal Radiography – Advanced Imaging for Pets
SKU: UMY-XM-007
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-007
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year

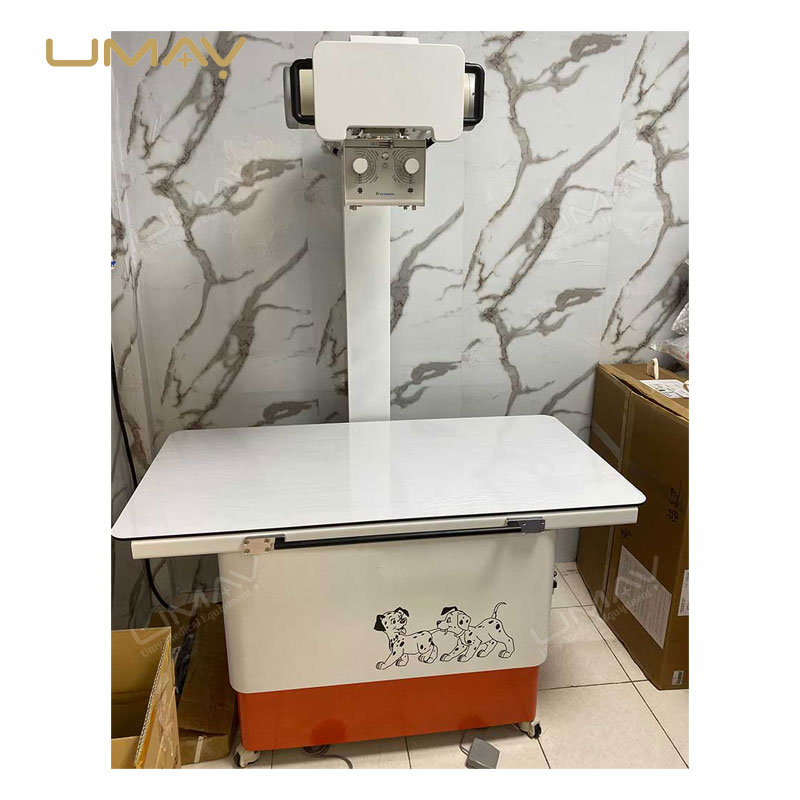

The digital veterinary X-ray system is designed specifically for animal hospitals and clinics, providing high-quality imaging for pets and animals. This advanced radiography machine delivers clear, detailed images, ensuring accurate diagnoses for a wide range of veterinary needs. Its digital technology offers fast processing, making it ideal for busy practices. The system is compatible with DR panels and offers an affordable solution for veterinary radiography, enhancing patient care with precise and efficient imaging.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Main Parameters of Generator | |
| kV Range | 40~150kV |
| mA Range | 32~630mA |
| Exposure Time Range | 0.003~6.3s |
| mAs Range | 1mAs~640mAs |
| Operating Frequency | ≥30kHz |
| Power Supply | Three Phases 380V ± 10% |
| Main Parameters of Tube | |
| Nominal Focal Spot | 1.0mm / 2.0mm |
| Anode Characteristics | Rotation anode |
| Anode Speed | 2800rpm |
| Anode Input Power | 50kW @ large focal spot, 20kW @ small focal spot |
| Main Parameters of Detector | |
| Active Area | 427mm × 427mm |
| Resolution | 3072 × 3072 |
| Pixel Pitch | 139μm |
