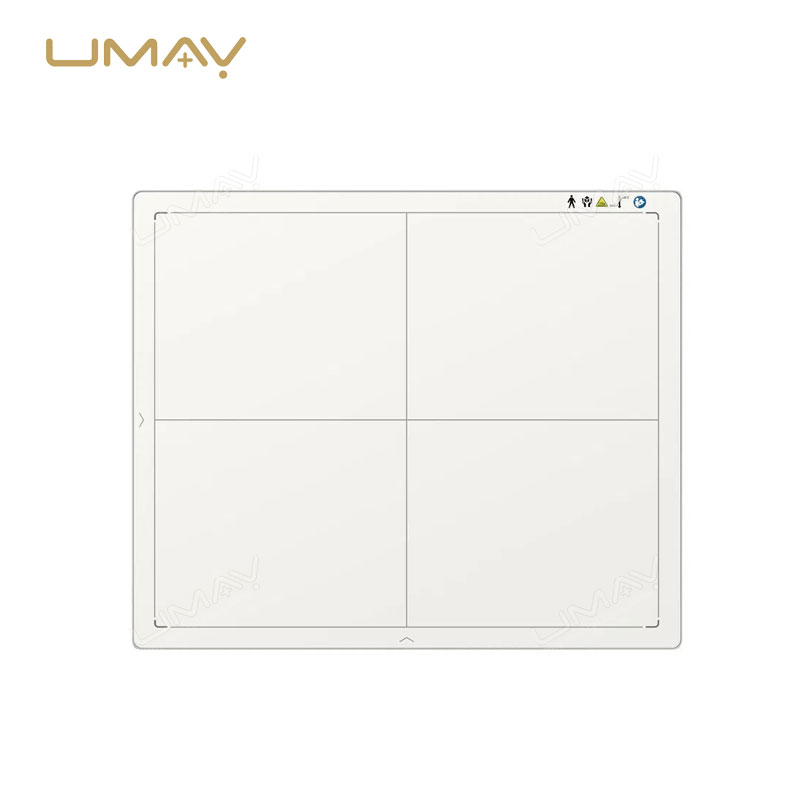

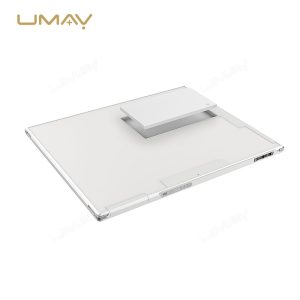

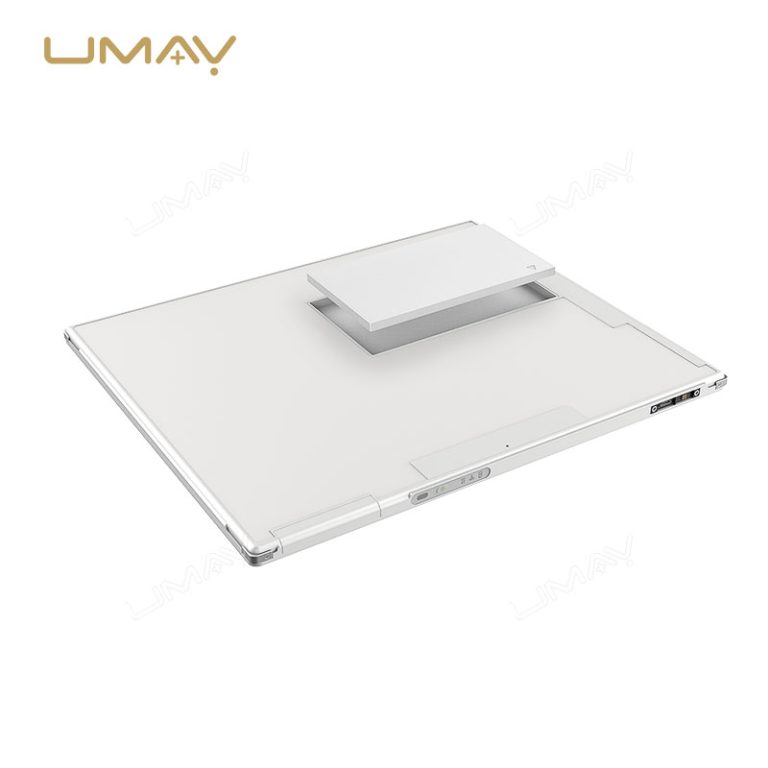

Digital Flat Panel Detector for Veterinary X-ray Radiology
SKU: UMY-XM-046
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-046
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The digital flat panel detector is specifically designed for veterinary X-ray radiology, providing high-resolution imaging for accurate diagnostics in animal care. This advanced detector enhances image quality while minimizing radiation exposure, ensuring safer and more effective diagnostic procedures. Its lightweight and portable design makes it easy to integrate into existing veterinary X-ray systems, improving workflow efficiency in both clinics and mobile veterinary practices. This flat panel detector is an essential tool for delivering precise radiology services in modern veterinary care.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Pixel Size | 150 µm |
| Detector Technology | Amorphous Silicon |
| Scintillator | CsI |
| Active Area (inch) | 14″ × 17″ |
| Dimension (mm) | 384 × 460 × 15 |
| Connection | Wireless |
| Full Image Time (s) | 5s |
| AD Conversion | 16 bit |
| Cassette Size | Y |
| AED | Optional |
| Shock Sensor | Optional |
| AEC | N |
| Dynamic | N |
| Panel Authorization | Optional |
| Ingress Protection | IPX1 |
| Weight | 3.3 kg |
| On-board Corrections | Y |
| Battery Autonomy | 8.5 h |
| Battery Hot-swap | N |
