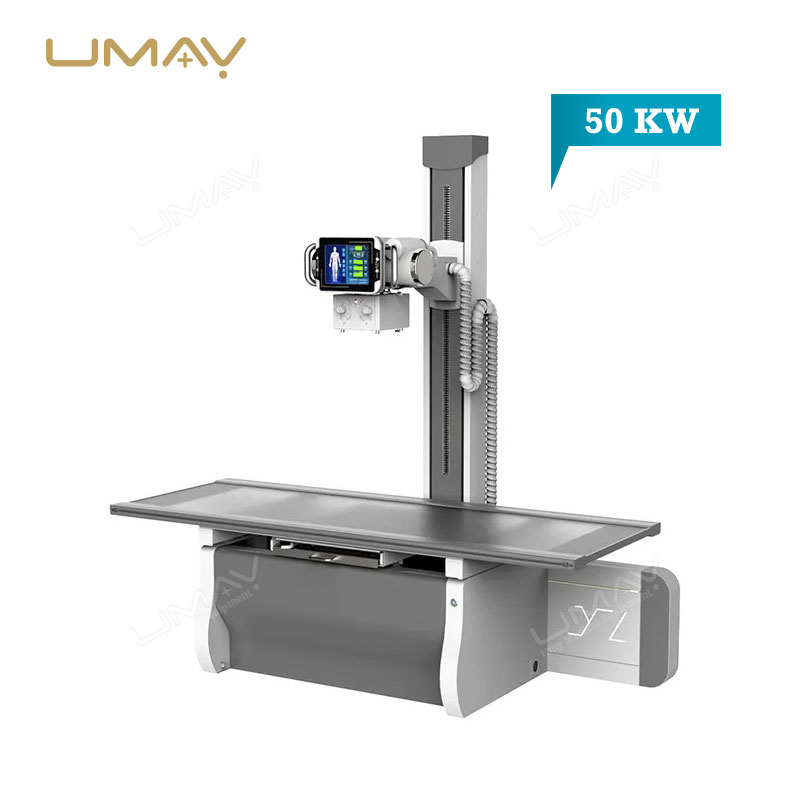

Digital 50kW X-ray Radiography System with Toshiba Tube and Flat Panel Detector
SKU: UMY-XM-035
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-035
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The digital 50kW X-ray radiography system is designed for precise chest and abdomen imaging, equipped with a high-quality Toshiba tube and a flat panel detector for superior image clarity. This system provides efficient and accurate diagnostics, making it ideal for hospitals and clinics looking to enhance their imaging capabilities. The advanced flat panel detector ensures faster image processing with reduced radiation exposure, improving patient safety and workflow efficiency. This versatile X-ray system is an excellent investment for modern medical facilities aiming for reliable and high-performance radiography.
Explore our 20kw model to discover its capabilities!
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | 20kW 200mA; 50kW 500mA |
| Intermittent Mode | 100kV, 200mA, 20kW; 100kV, 500mA, 50kW |
| Power Voltage | Three-phase, five wires, 380V ± 38V |
| Tube Current | Radiography: 16mA~200mA; 16mA~630mA |
| Output Voltage | Radiography: 40-125KV, step 1kV |
| Resistance Power | < 0.5Ω |
| Output Power | 20kW; 50kW |
| Exposure Time | Radiography: 0.0025s ~ 6.4s adjustable |
| Nominal Frequency | ≥30kHz |
| Anode Speed | 2800r/min |
| Anode Heat Capacity | 140KHU |
| Focus | Small focus: 1.0mm; Large focus: 2.0mm |
| Bed Surface Dimensions (L*W*H) | 2100mm × 825mm × 650mm |
| Horizontal Moving Range | ≥250mm |
| Vertical Moving Range | ≥825mm |
| Grid Density | ≥40 lines/cm |
| Grid Ratio | 10:01 |
| Focus Distance | 100cm |
| Cassette Size | 5″x7″, 8″x10″, 10″x12″, 11″x14″, 14″x17″ |
| Transportation and Storage Conditions | |
| Ambient Temperature | -20°C ~ +70°C |
| Relative Humidity | 10% ~ 100% (including condensation) |
| Atmospheric Pressure | 50Kpa ~ 106Kpa |
| Main Technical Parameters | |
| Function | Radiography |
| X-ray Machine Maximum Output Power | Intermittent mode: 100kV, 200mA, 20kW |
| X-ray Machine Tube Current Range | 16mA ~ 200mA |
| X-ray Machine Tube Voltage Range | 40kV ~ 125kV |
| Exposure Time | 0.0025s ~ 6.4s |
| Nominal Working Frequency | ≥30kHz |
| Power Supply | Three-phase, five wires, 380V ± 38V |
| Main Configuration | |
| High Frequency High Voltage Generator | Includes control console |
| X-ray Tube Focus | Small focus: 1.0mm; Large focus: 2.0mm |
| Anode Thermal Capacity | 140KHU |
| Collimator Power Supply | AC 24V |
| Radiography Bed | Single phase 220V ± 22V, 50Hz ± 1Hz |
| X-ray Components Supporting Frame | Braking mode: Electromagnetic brake, Braking force: ≥98N |
| Button Operation Filter | N40, R10, 11, stationary type, size: 14″ x 17″ |
| Bed Size (L*W*H) | L2000mm × W760mm × H685mm |
| Vertical Moving Range | ≥825mm |
| Horizontal Moving Range | ≥250mm |
