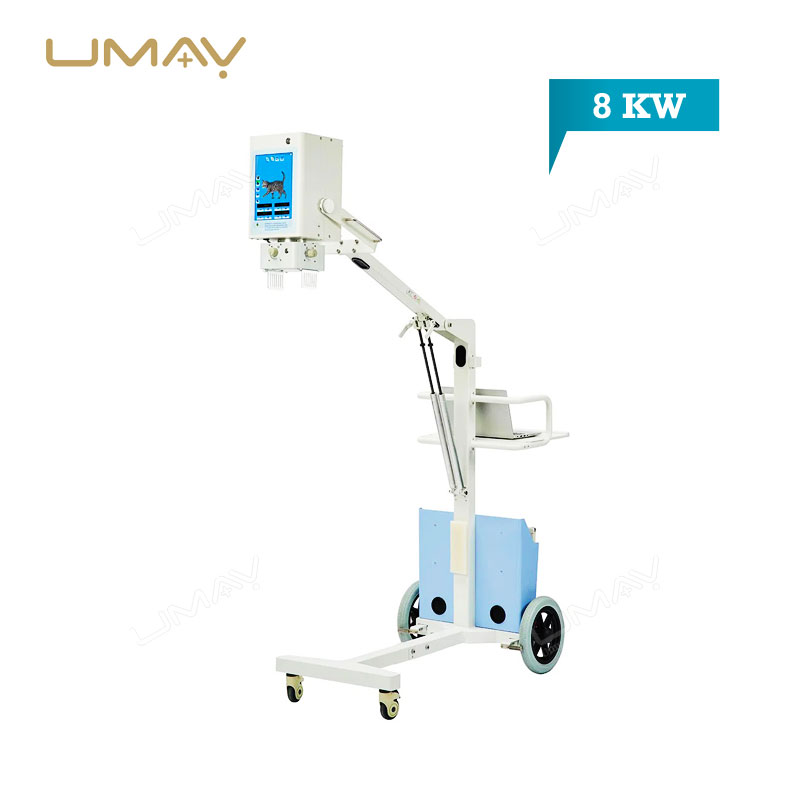

8kW Ultra-High Frequency Portable X-ray Machine for Veterinary Applications
SKU: UMY-XM-030
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-030
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year
The 8kW ultra-high frequency portable X-ray machine provides powerful and precise imaging solutions for veterinary clinics and mobile practices. Its ultra-high frequency technology ensures detailed and clear images, ideal for diagnosing small and large animals with minimal radiation exposure. This portable design allows for flexibility in a variety of settings, from in-clinic use to fieldwork. With its high power output, this machine enhances diagnostic accuracy and workflow efficiency in veterinary care, making it a reliable tool for modern veterinary practices.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Power | 8.0kW |
| Touch Screen Size | 10 inch |
| mA Range | 10-125mA |
| kV Range | 40-125kV |
| mAs Range | 0.1-360mAs |
| Exposure Time Range | 0.01-10s |
| Focal Spot | 2.0mm |
| Full Charging Time | 4h |
| Stand-by Time | 28h |
| Exposure Times at Fully Charged | 500 times at 100kV, 80mA, 100mS |
| Net Weight | 20kg |
| Gross Weight (Machine + Wooden Case) | 31.5kg |
| Dimensions (Machine + Wooden Case) | 600 × 420 × 460mm |
