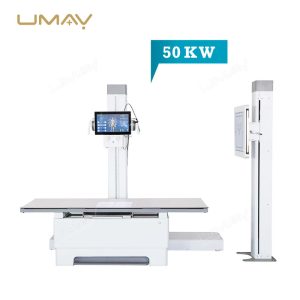

50KW Hospital Stationary DR X-ray Machine High Frequency Medical Imaging System
SKU: UMY-XM-067
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-067
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum & Magnesium Alloys and Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 1000 Sets/Year
This premium 50KW Digital Radiography X ray Machine provides superior diagnostic imaging with enhanced high frequency technology for exceptional detail and clarity. Specifically engineered for permanent hospital installation, this powerful system allows healthcare providers to visualize intricate anatomical structures while minimizing patient radiation exposure. The 50KW power output delivers reliable performance for demanding medical applications including trauma assessment, orthopedic evaluation, and comprehensive diagnostic procedures.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| X-ray Generator Specifications | |
| Power Output | 50KW / 630mA |
| Generator Frequency | 30kHz / 200kHz (optional) |
| Power Supply | 50Hz or 60Hz, wire diameter >4mm², internal resistance <0.50; supports 50kW (220V(SY)/380V(D)) |
| Exposure Control | |
| Tube Current (mA) | 10–630 |
| Tube Current-Time Product (mAs) | 0.4–1000 |
| Tube Voltage (kV) | 40–150kV (1kV step) |
| Exposure Time | 1ms–10000ms |
| X-ray Tube and Heat Capacity | |
| Focus Size | Default 0.6×0.6mm / 1.2×1.2mm dual focus (Toshiba option) |
| Anode Rotating Speed | 8400rpm |
| Anode Heat Capacity | 1300kHU |
| Radiography Table | |
| Table Dimensions | 73cm (W) × 200cm (L) |
| Table Movement | 74cm left/right, 20cm back/front |
| Flat Panel Detector | |
| Image Size | 17×17 inch (14×17 inch option available) |
| Pixel Matrix | 140μm |
| A/D Conversion | 16 bits |
| Spatial Resolution | 3.6 Lp/mm |
| Software | Professional Imaging Software |
| Computer Configuration | CPU: 15, 8G memory, 1T solid state drive, 2 pcs Gigabit network card |
