5.0kW Portable High-Frequency Veterinary X-ray Machine at Factory Price
SKU: UMY-XM-009
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-XM-009
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton or Wooden Cases
- Origin: China
- Material: Aluminum and magnesium alloys
- After-Sale Service: Online Technical Support
- Production Capacity: 500 Sets/Year

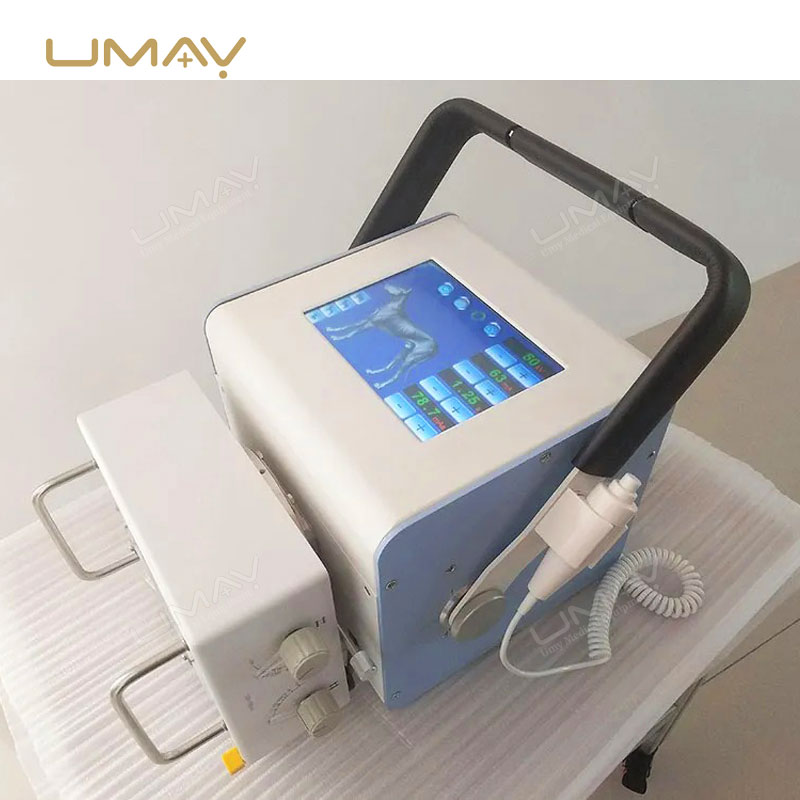

The 5.0kW portable high-frequency veterinary X-ray machine is designed for versatile and efficient animal care, providing high-quality imaging for both small and large animals. Its high-frequency technology ensures clear, precise images while minimizing radiation exposure, making it a safe option for veterinary diagnostics. The portable design allows for easy transportation, ideal for use in clinics or mobile veterinary services. Offered at an affordable factory price, this machine is a cost-effective solution for veterinary professionals seeking reliable and accurate imaging tools.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| General Specifications | |
| Inverter Frequency | ≥30kHz |
| Input Power Type | 220V ±10%, 50Hz/60Hz |
| Host Size | 370mm × 260mm × 230mm |
| Weight | 21kg |
| Inverter Mode | PWM (Pulse Width Modulation) |
| Maximum Output Power: | 5.0kW |
| Power Capacity | 100kV @ 50mA |
| Photography kV Range | 40-50kV, 40-60kV, 40-80kV, 40-100kV, 40-110kV |
| Photography mA Range | 100mA, 80mA, 63mA, 50mA, 40mA, 32mA |
| mAs Range | 0.32-315mAs |
| Exposure Time Range | 0.01-6.3s |
| Maximum Output Power: | 3.5kW |
| Power Capacity | 70kV @ 50mA |
| Photography kV Range | 40-70kV, 40-90kV, 40-110kV |
| Photography mA Range | 50mA, 40mA, 32mA |
| mAs Range | 0.32-200mAs |
| Exposure Time Range | 0.01-4s |
