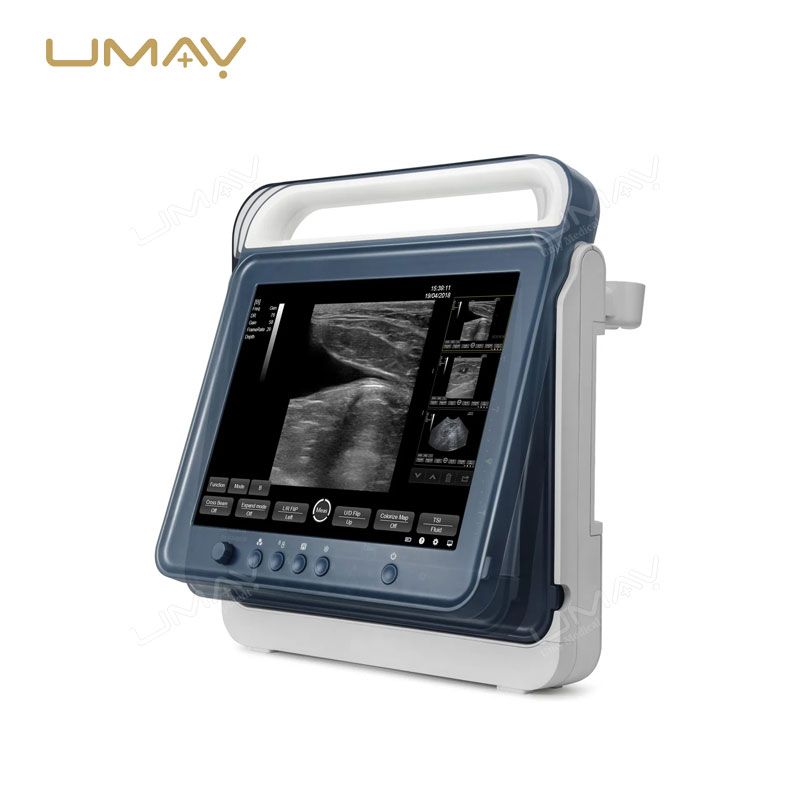

Portable Black and White Veterinary Ultrasound Scanner with Touch Screen for Horses and Cows
SKU: UMY-US-006
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-006
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 800 Sets/Year
This portable black and white ultrasound scanner is designed for veterinary use, featuring a touch screen interface that simplifies imaging for large animals like horses and cows. Its high-resolution imaging capabilities aid in accurate diagnostics for reproductive and general health assessments in livestock. The device’s portability allows for flexible use on farms and in clinics, ensuring convenient and reliable animal care. Essential for veterinarians, this scanner combines ease of use with precise imaging to support livestock health management.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Physical Specifications | |
Height (mm) | 402 |
Width (mm) | 385 |
Depth (mm) | 53 |
Weight (kg) | Around 4.5 (Include Battery) |
Material | Fireproofing and anti-corrosion ABS |
Monitor Specifications | |
Type | 15″ High-Resolution LCD Monitor |
Resolution | 1024×768 |
Brightness | Adjustable |
Max Opening Angle | 45° |
Touchscreen Specifications | |
Type | Fully Resistive Touch Screen |
Transducer Elements | 128 |
Power Specifications | |
System Power | AC Power & Battery |
AC Adapter Model | MSL-15AD |
Voltage (V) | 100-240 |
Frequency (Hz) | 50/60 |
Current (A) | 5 |
Output (V) | 15 |
Battery Specifications (Optional) | |
Type | Lithium-Ion, 11.1V, 7000mAh |
Charge Time | 6 hours |
Max Duration | 180 minutes realtime scan |
Operating Environment | |
Temperature (°C) | 0-40 |
Humidity (%) | 30-85 (Non-Condensing) |
Pressure (hPa) | 700-1060 |
Storage and Transport | |
Temperature (°C) | -20 to 55 |
Humidity (%) | 30-95 (Non-Condensing) |
Pressure (hPa) | 700-1060 |
