Hot-Selling 3-in-1 Color Doppler Ultrasound Scanner with Phased Array, Linear, and Convex Probes
SKU: UMY-US-041
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-041
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This hot-selling 3-in-1 color Doppler ultrasound scanner integrates advanced digital imaging technology with phased array, linear, and convex probes, supporting comprehensive cardiac, vascular, and abdominal diagnostics. Its versatile probe options and high-resolution Doppler capabilities enable accurate visualization of blood flow and internal structures across a range of applications. Designed for clinics and hospitals, this scanner offers flexibility and precision, enhancing diagnostic accuracy in a single, compact unit.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Scanning Mode | Electronic Array |
Probe Type | Consists of Convex and Linear; Convex with Phased Array Scan Mode |
Display Mode | B, B/M, B+Color, B+PDI, B+PW |
Probe Element | 96 |
RF Circuit Board Channels | 24 |
Probe Specifications | |
Convex Head Frequency & Scan Depth | 3.5MHz/5MHz, 90/160/220/305mm |
Convex Head Radius | 45mm |
Convex Head Scan Angle | 50° |
Convex Head (Phased Array/Cardiac) Frequency & Scan Depth | 3.5MHz/5MHz, 90/160/220/305mm |
Convex Head (Phased Array/Cardiac) Radius | 45mm |
Convex Head (Phased Array/Cardiac) Scan Angle | 80° |
Linear Head Frequency & Scan Depth | 7.5MHz/10MHz, 20/40/60/100mm |
Linear Head Width | 40mm |
Image Adjustments | BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
Cineplay | |
Playback Modes | Auto and Manual |
Frame Options | 100 / 200 / 500 / 1000 |
Puncture Assist | |
In-Plane Puncture Guide Line | Available |
Out-of-Plane Puncture Guide Line | Available |
Automatic Blood Vessel Measurement | Available |
Measurement Functions | Length, Area, Angle, Heart Rate, Obstetrics |
Image Storage | |
Supported Formats | JPG, AVI, DICOM |
Performance | |
Image Frame Rate | 18 frames/second |
Battery Working Time | 3.5 hours (depending on scan usage) |

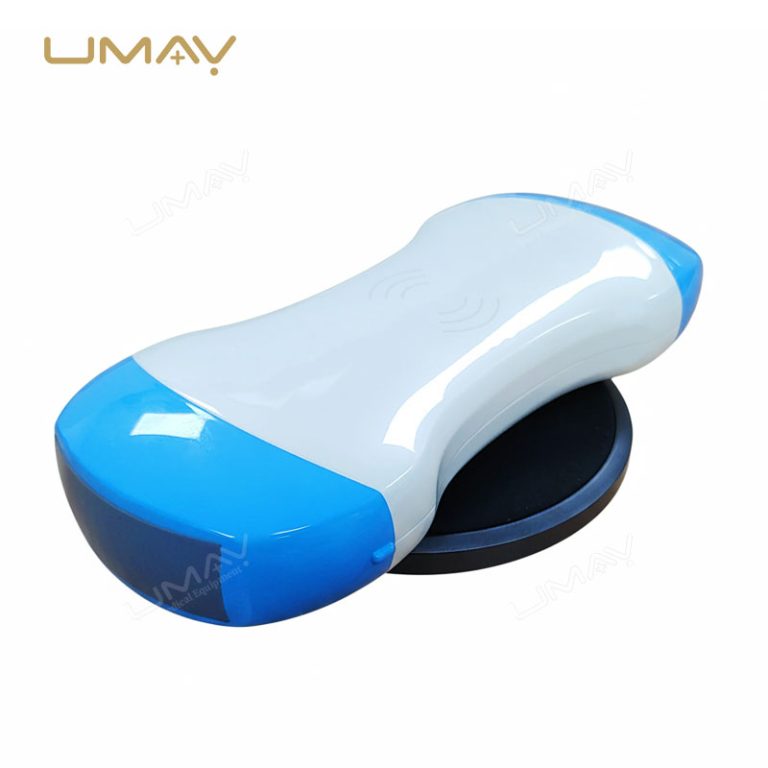

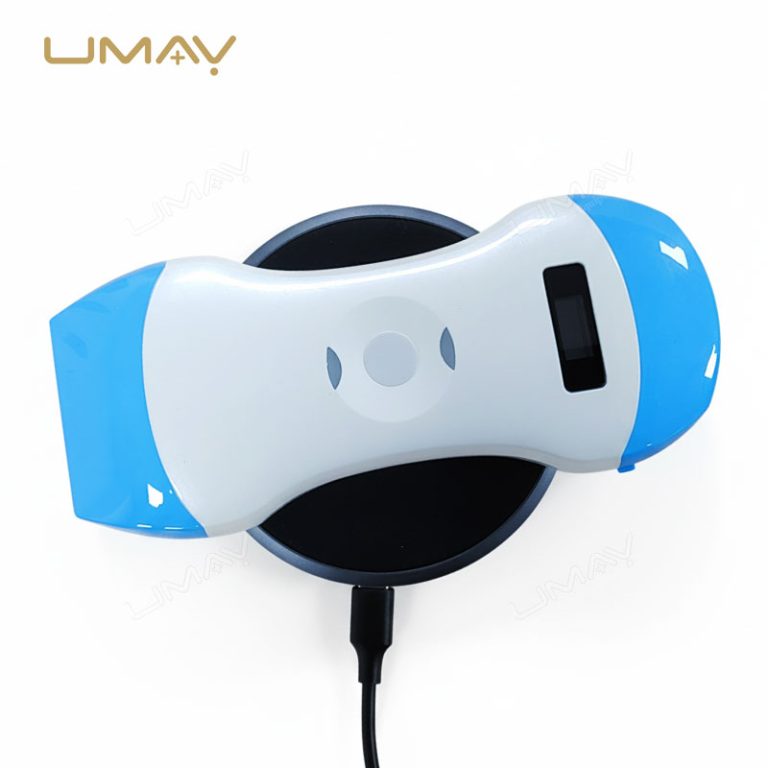

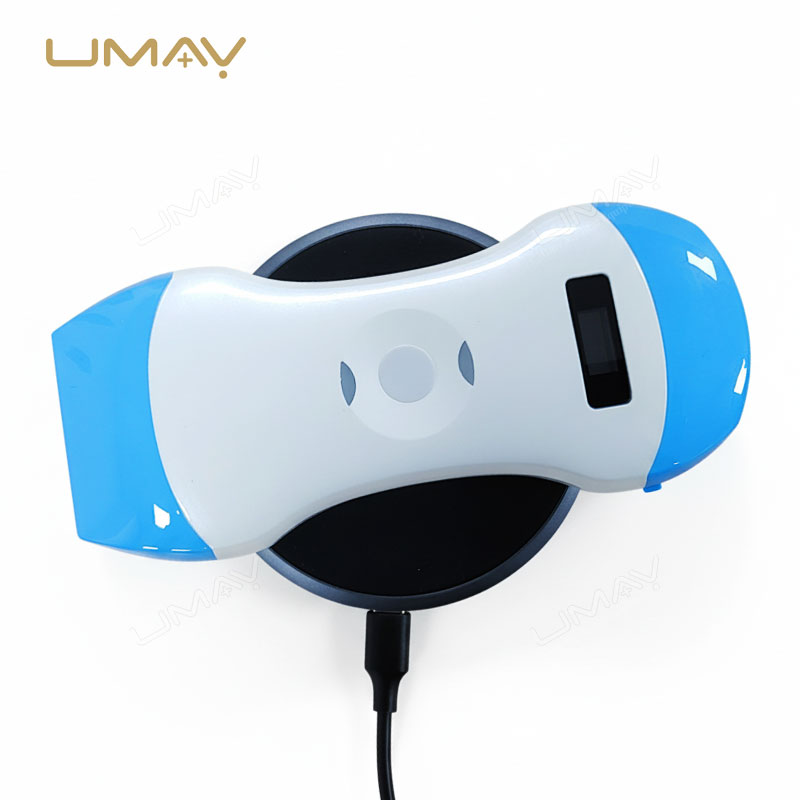

Battery Charging | Wireless Charging, 2 hours |
Physical Specifications | |
Dimensions | L156 × W60 × H20mm |
Weight | 260g |
Connectivity | 802.11g / 20MHz / 5G / 450Mbps |
Compatibility | Apple iOS, Android, Windows |
