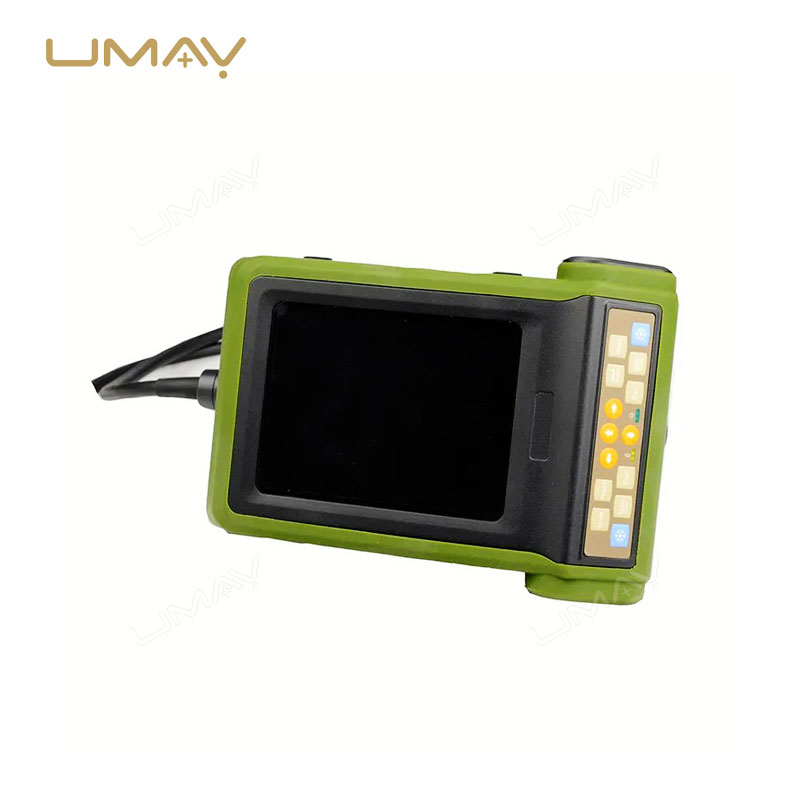

Handheld Veterinary Ultrasound Scanner for Pregnancy Diagnosis in Animals
SKU: UMY-US-026
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-026
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3600 Sets/Year
This handheld veterinary ultrasound scanner is specifically designed for accurate pregnancy diagnosis in animals, providing high-resolution imaging for reproductive health assessments. Compact and easy to operate, it is suitable for use in various settings, from veterinary clinics to farms. Its portability allows veterinarians to perform on-the-spot diagnostics, ensuring efficient and timely care for livestock and pets. This scanner is an essential tool for veterinarians focused on reliable reproductive health monitoring.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Specifications | |
| Local Zooming | Local zooming feature |
| Depth Hoist | Adjustable depth hoist |
| Image Adjustment | Image up/down, left/right, black/white |
| Pseudo Color | 8 kinds available |
| Angles | Four different angles / switchable width |
| Permanent Storage | 100 frames permanent storage |
| Cine Loop | 256 frames |
| Puncture Guide | Two approvable guiding lines with adjustable angle and position |
| Gravel Software | Preset software package with real-time position line measurement |
| Measurements | Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc. |
| Cardio Measurement | Depth, slope, heart rate, cycle |
| OB Measurement | Cattle, dogs, horses, pigs, cats, goats, camels, and sheep and pre-gestational age birth |
| Back-Fat Analysis | Automatic calculation function |
| OB Report | Report for obstetrics measurements |
| USB Port | Supports large capacity storage, file management, software upgrade, one-key storage |
| Display Features | |
| LED Display | 5.7″ high resolution, suitable for outdoor use |
| Language | English |
| Probe Socket | Single probe socket, auto identify probe |
| Body Mark | General, Bovine, Canine, Equine, Feline, Cardio, Swine (27 kinds) |
| Display Modes | B, 2B, 4B, B/M, M |
| Gain | 0~127dB |
| Contrast | 27~90dB |
| Gray Levels | 256 levels |
| Focus | 1, 2, 3, 4 |
| Magnification | 0.8, 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 3.0 |
| Multi Frequency | 4 different frequencies for each probe |
| Depth | 8 steps, up to 240 mm |
| Frame Correlation | 0, 1, 2, 3 |
| Character Brightness | Select between 160, 192, 224, 255 |
| Key Sound | On/Off |
| Compressing Curve | 7 kinds |
| Probes and Accessories | |
| Category | Details |
| Probes | 4.0 MHz Multi-frequency Convex Rectal Probe |
| Probes | 6.5 MHz Multi-frequency Micro-convex Probe |
| Probes | 3.5 MHz Multi-frequency Convex Probe |
| Probes | 6.5 MHz Multi-frequency Trans-vaginal Probe |
| Probes | 7.5 MHz Multi-frequency Linear Probe |
| Probes | 3.5 MHz Multi-frequency Micro-convex Cardiac Probe |
| Probes | 3.5 MHz Loin Muscle Probe |
| Accessories | Thermal Printer (P93W-S) |
| Accessories | Color Laser Printer (HP Color LaserJet CP1515n, HP Color LaserJet CP1525n) |
| Accessories | Lithium Battery (5200mAh) |
| Accessories | Leather Case Saddlebag |
| Standard Configuration | |
| Main Unit | 1 pc |
| Rectal Probe | 6.5 MHz linear rectal probe: 1 pc |
| Power Adapter | 1 pc |
| Internal Battery | Lithium battery: 1 pc |
| Rubber Coat | Soft rubber coat: 1 pc |
| Sunshine Cover | A, B, C three-section adjustable: 1 unit |
| Suitcase | Black plastic suitcase: 1 pc |
| Base Charger | Belt, probe socket spatula: 1 pc for each |
| Power Supply | AC110/230 -15% ~ +10%, 60/50Hz±1Hz |
| Battery | 5200mAh, more than 6 hours of work |
| Weight | 1.1 kg |
| Dimensions | 212×154×58 mm (L×W×H) |
| Video Output | PAL/NTSC |
