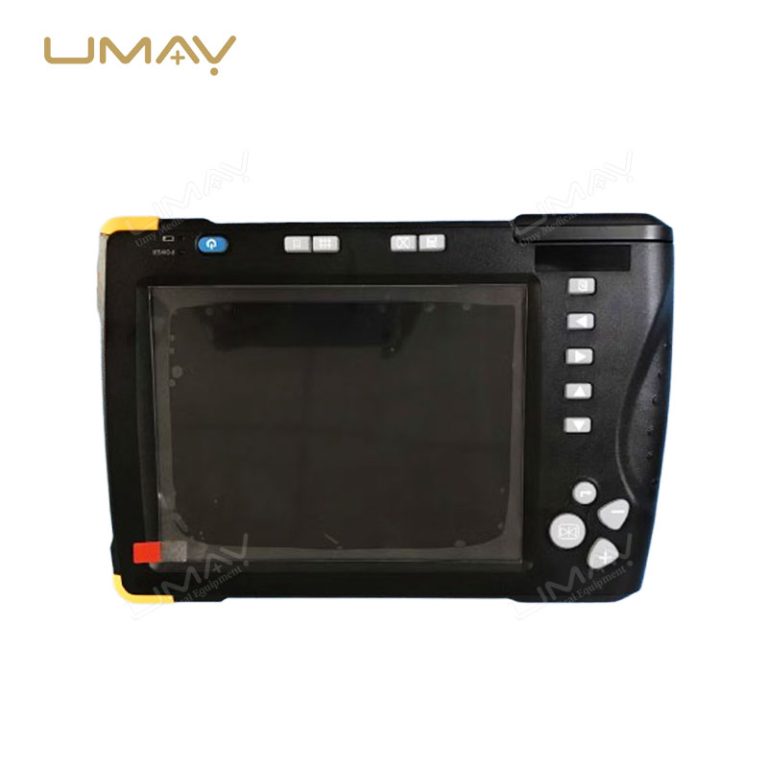

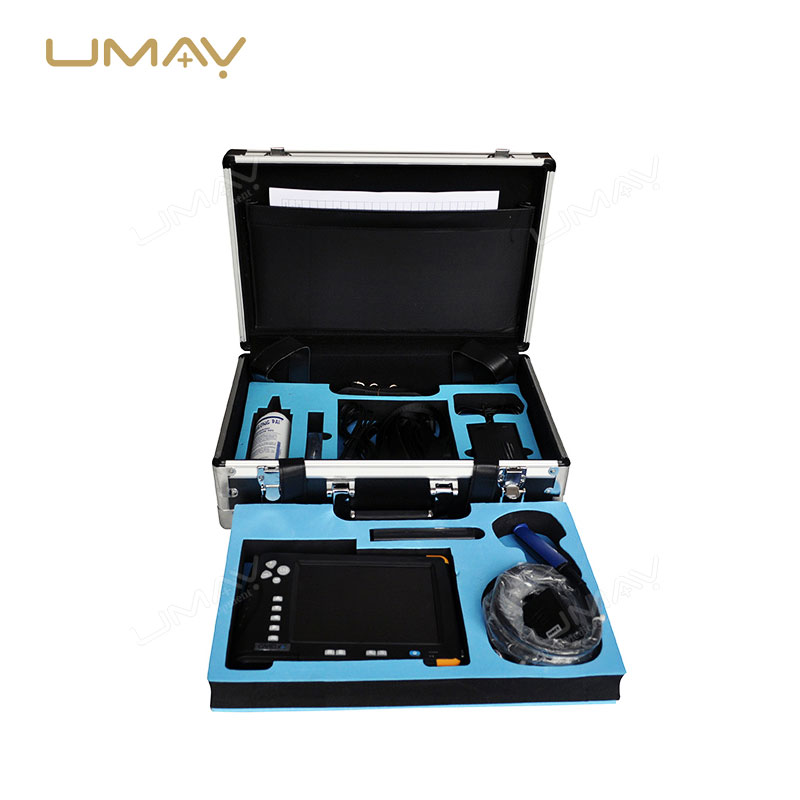

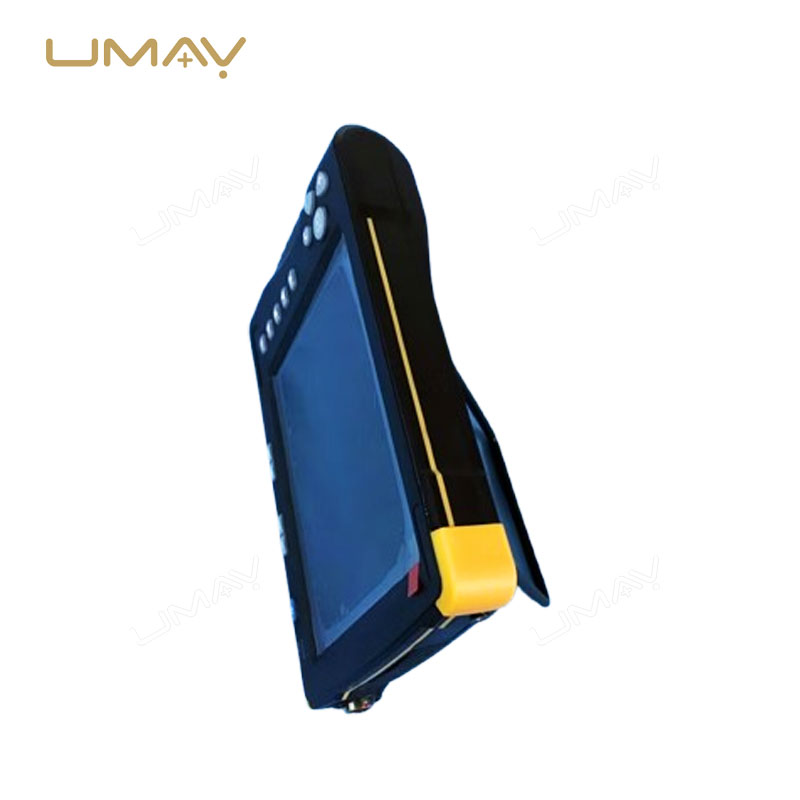

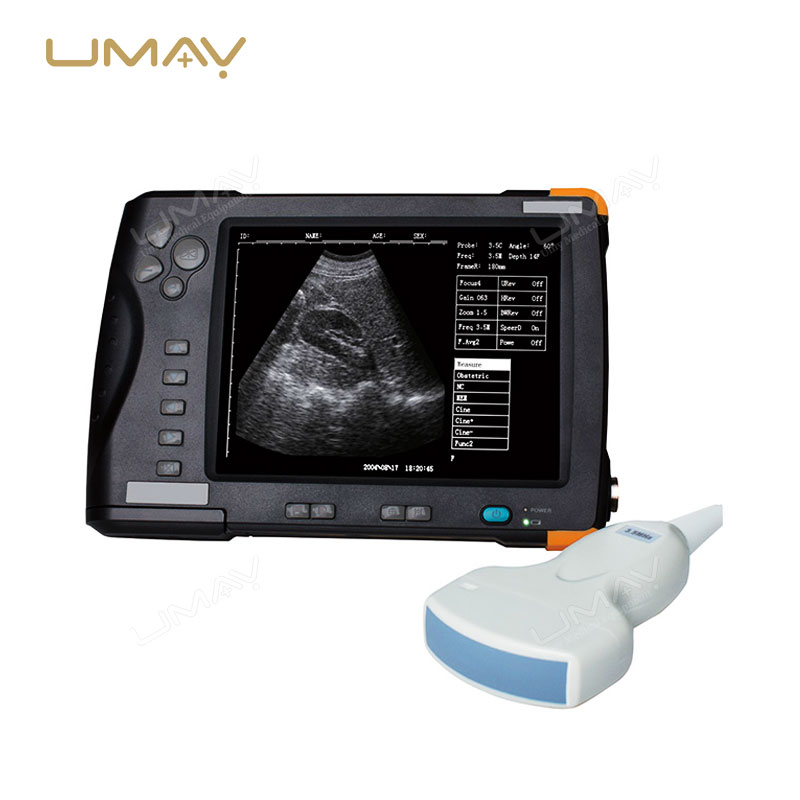

Customer-Favorite Portable Veterinary Ultrasound Scanner with Precision Imaging
SKU: UMY-VEUS-013
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-VEUS-013
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
This customer-favorite portable veterinary ultrasound scanner features precision imaging, ideal for detailed diagnostics in reproductive, abdominal, and general animal health assessments. Designed for both clinic and field use, it provides high-quality visuals, enabling veterinarians to make accurate, on-the-spot evaluations. Lightweight and user-friendly, it ensures reliable imaging for comprehensive animal care. This scanner is essential for veterinarians seeking a trusted, portable diagnostic solution.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Probe Specifications | |
| Probe Model | 3.5C8060L-3.5M, 5.0C8020L-5.0M, 6.5LV8064L-6.5M, 3.5L8016OL-3.5M |
| Detection Depth | ≥180mm, ≥80mm, ≥50mm, ≥140mm |
| Dead Zone | ≤3 mm (All models) |
| Resolution (Horizontal) | ≤2 mm (Depth ≤80mm), ≤1 mm (Depth ≤40mm), ≤1 mm (Depth ≤60mm) |
| Resolution (Vertical) | ≤1 mm (Depth ≤80mm), ≤0.5 mm (Depth ≤40mm), ≤0.5 mm (Depth ≤50mm), ≤1 mm (Depth ≤50mm) |
| Geometric Location Accuracy | Horizontal ≤5%, Vertical ≤5% |
| Amplification Factor | 1.0, 1.2, 1.5, 2.0 (All models) |
| Technical Specifications | |
| Scanning Manner | Electronic convex array, electronic linear array |
| Working Frequency | 2.0MHz ~ 10MHz |
| Display Mode | B, B+B, B+M, M, 4B |
| Scanning Range | Convex array 60° ~ 150° |
| Image Gray-Scale | 256 levels |
| Scanning Line Number | 512 lines/frame |
| Frame Rate | 30 frames/second |
| Digital Scanning Conversion | 512×512×8 bits |
| Display Screen | 7″ TFT |
| Physical Specifications | |
| Overall Size | 228mm × 152mm × 37mm |
| Total Weight | 981 g |
| Memory Capacity | >2GB |
| Battery Capacity | 3000mAH / 7.4V |
