CE Approved 3D/4D Full Digital Trolley Doppler Ultrasound Scanner
SKU: UMY-US-019
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-019
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 2000 Sets/Year

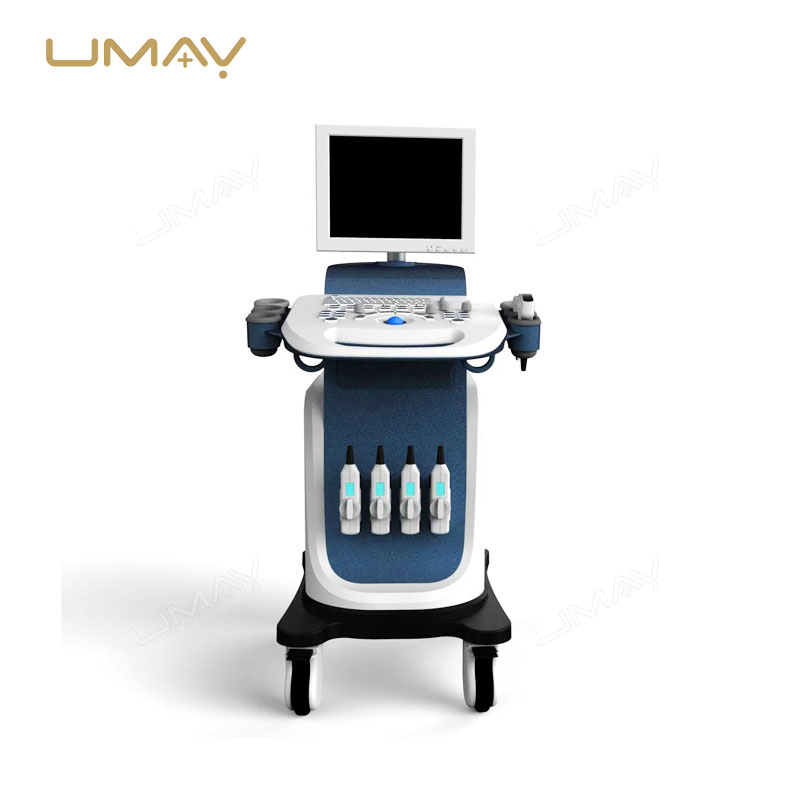

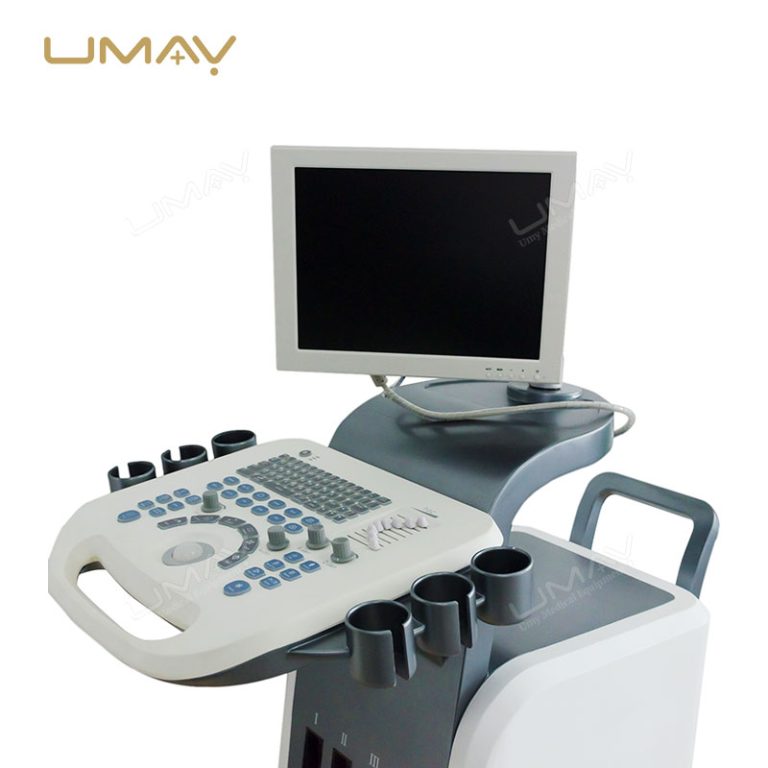

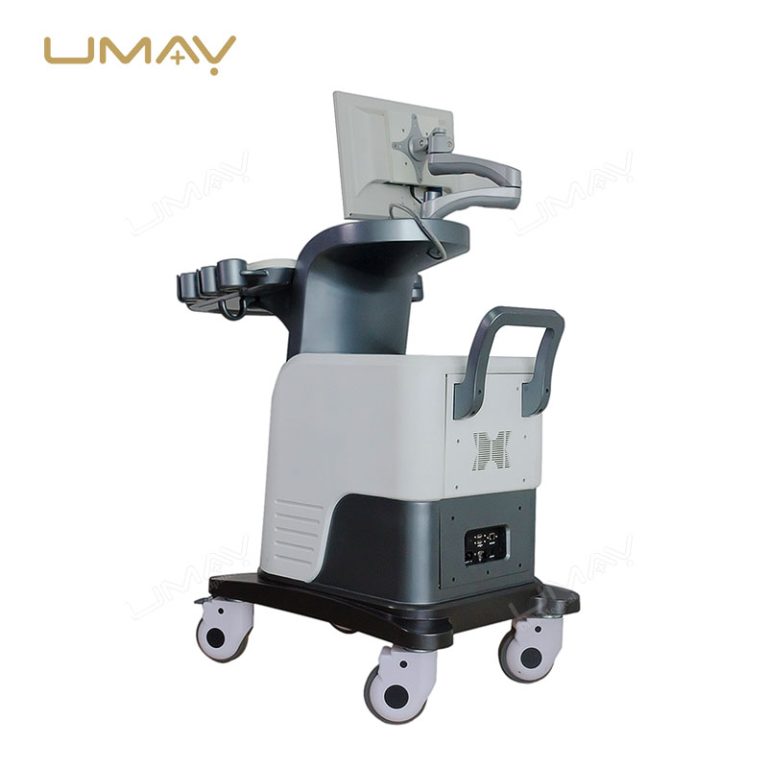

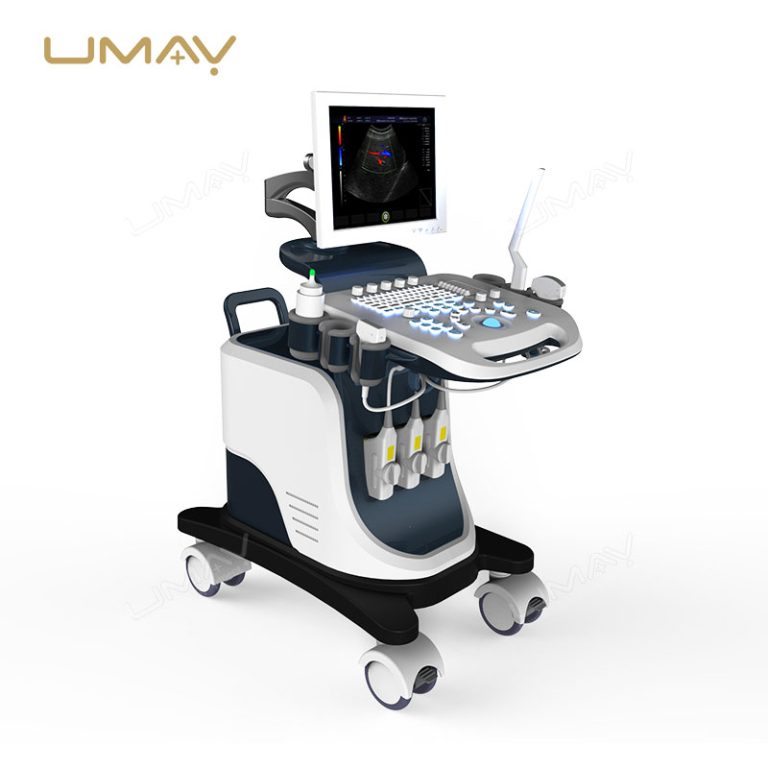

This CE-approved full digital Doppler ultrasound scanner provides advanced 3D and 4D imaging capabilities, ideal for comprehensive diagnostic applications. Mounted on a mobile trolley, it offers convenience and mobility within clinical settings, supporting accurate imaging for cardiovascular, obstetric, and abdominal assessments. The color Doppler technology enhances visualization of blood flow, enabling precise diagnostic insights. This ultrasound machine is essential for medical facilities aiming for high-quality, versatile imaging solutions.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Operating Conditions | |
| Operating Ambient Temperature | +5ºC ~ +40ºC |
| Relative Humidity | ≤80% |
| Atmospheric Pressure | 700hPa—1060hPa |
| Power Supply | AC220V±22V, 50Hz±1Hz |
| Independent Power Supply Requirement | Plug seat shall have an independent power supply. |
| Environmental Caution | Be far away from strong electric field, strong magnetic field equipment, and high voltage equipment. |
| Scanning and Display Features | |

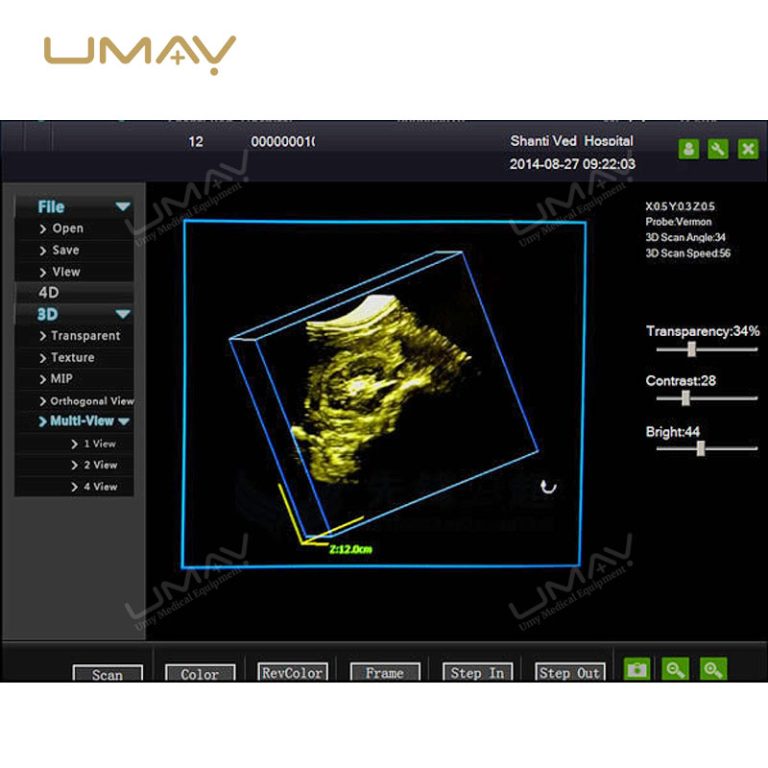

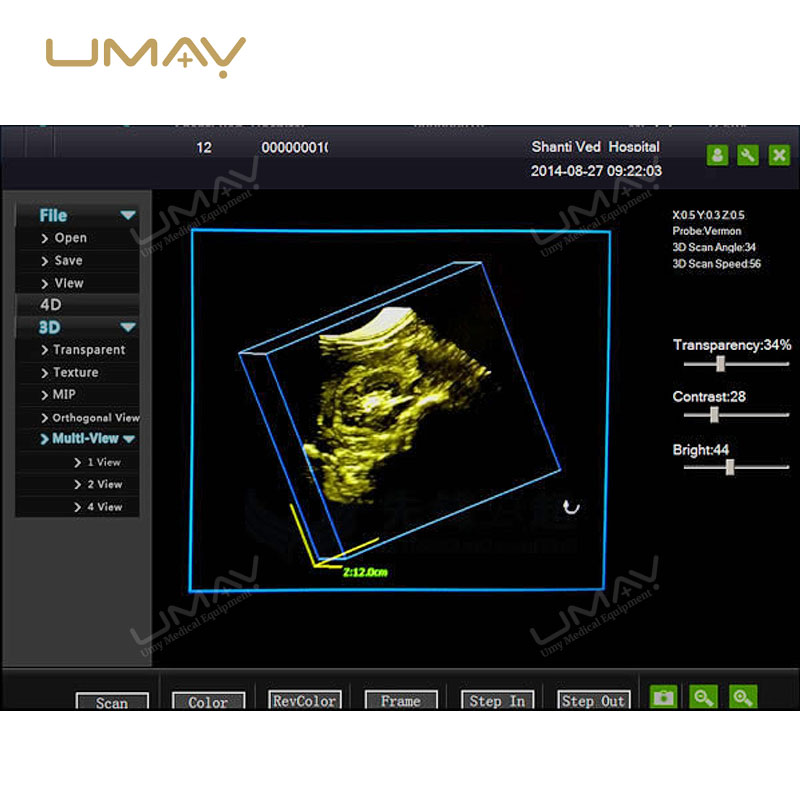

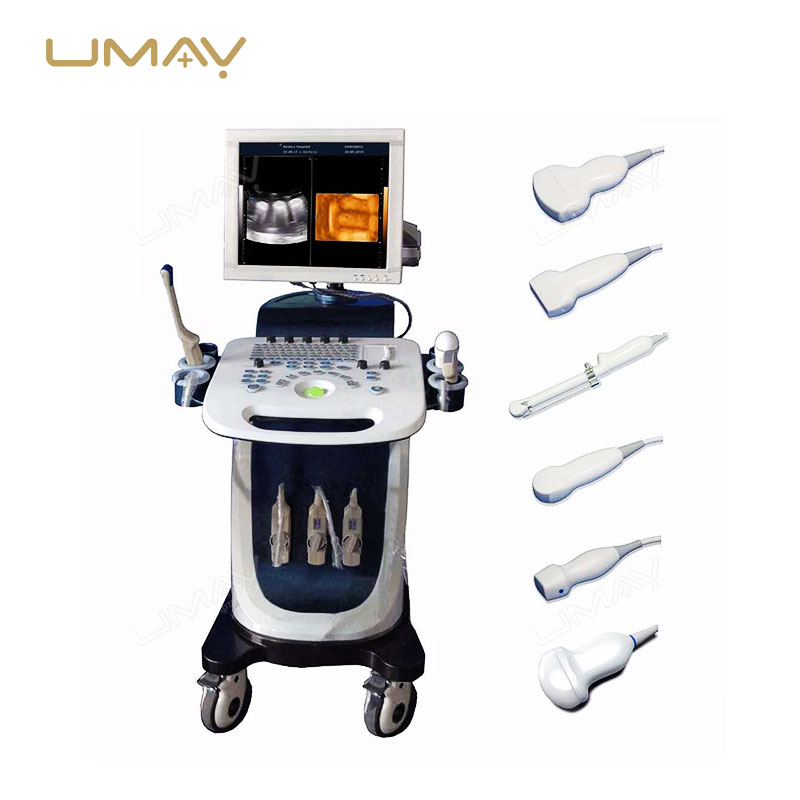

| Scanning Mode | Convex array, lumen, high-frequency linear array, phased array, 3D software (Optional accessories) |
| Dynamic Range | 0~120dB adjustable |
| Display Mode | B, B/M, B/MF, CFM, CMF/B, PDI, B/PW, total eight modes |
| Application Modes | Abdomen, gynecology, obstetrics, superficial organ, urologist, heart, and user-defined models (ten in total) |
| Image Mode | Digital beam forming, tissue harmonic imaging |
| Gray Scale | 256 levels |
| Depth Display | ≥250mm |
| Pseudo Color Processing | 16 kinds of pseudo color encoding optional |
| Gain Adjust | 8 segments TGC, independently adjustable; TGC curve auto-hide/show |
| Acoustic and Image Features | |
| Acoustic Output | Mechanical index and thermal index real-time display |
| Acoustic Power | Step-adjustable, real-time display |
| Image Magnification | Picture-in-picture zoom-in/zoom-out |
| Image Processing | Edge enhancement (Multilevel adjustable), Line average (Multilevel adjustable) |
| Contrast | Adjustable |
| Brightness | Adjustable |
| Gamma Correction | Multilevel adjustable |
| Measurement and Calculation | |
| B Mode Routine Measurement | Distance, circumference, area, volume, angle, ratio, stenosis rate |
| M Mode Routine Measurement | Heart rate, time, distance, speed, ratio |
| Gynecology Measurement | Uterus, cervix, endometrial, ovary, follicular |
| Obstetrics Measurement | EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables) |
| Cardiology Measurement | LV measurement |
| Urology Measurement | Prostate volume, displacement volume, bladder capacity, residual urine output |
| PW Measurements | Time, speed, heart rate, RI, PI |
| Image and Reporting System | |
| Image Storage | Cine loop, disk storage capacity ≥160G |
| Patient Data | Medical record management, report inquiry, and printing |
| Output Interface | SR232, USB, DICOM interface |
