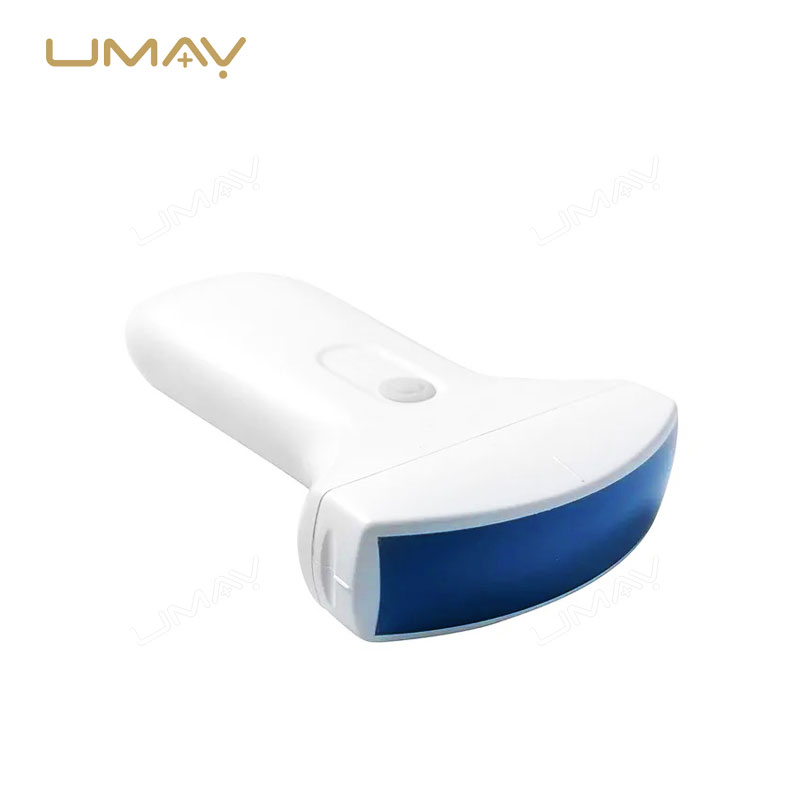

2024 USB & WiFi Handheld Color Doppler Ultrasound with Convex and Linear Probe Options
SKU: UMY-US-021
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-021
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 6000 Sets/Year
This 2024 handheld color Doppler ultrasound probe offers USB and WiFi connectivity, enabling flexible use in various clinical settings. With both convex and linear probe options, it provides high-resolution imaging for diverse applications, including abdominal and vascular assessments. Designed for portability, this digital ultrasound probe is ideal for quick, on-the-go diagnostics, supporting efficient and accurate patient evaluations. A reliable tool for healthcare professionals, it enhances workflow with advanced imaging in a compact format.
The Specific Parameters
ITEMS | PARAMETERS |
---|---|
Probe Specifications | |
Probe Type | Convex array probe |
Display Mode | B, B/M, B+Color, B+PW |
Frequency | 3.5/5.0MHz |
Display Depth | 90~305mm |
Probe Radius | 60mm |
Probe Length | Not applicable |
Connectivity | |
WiFi Type | 802.11n/2.4G/5G |
USB Type | Type C |
Image and Measurement Features | |
Image Adjust | B: GN (Bgain), D (depth), F (frequency), ENH (enhancement), TGC, DR (dynamic range) |
Color/PW | B: GN, PRF, WF, Steer, Box |
Measure | |
B | Length, Area, Circumference, GA (CRL, BPD, GS, FL, HC, AC) |
B+M | Heart Rate, Time, Distance |
B+PW | Velocity, Heart Rate (2), S/D |
Operation Features | |
Cinplay | Auto and manual, frames can set as 100/200/500/1000 |
Puncture Assist Function | In-plane puncture guide line, out-of-plane puncture guide line |
Image/Video Storage | Store on mobile phones, Tablet PC |
Power and Charging | |
Power | Built-in lithium battery, Replaceable |
Battery Working Time | 1.5~4h according to scan mode |
Charging Mode | USB charging |
Bootup | Platform dependent, generally <5 seconds |
System and Configuration | |
Working System | Android/iOS (Download for free) |
Standard Configuration | Host: 1pcs, USB cable: 1pcs |
Physical Specifications | |
Dimensions | 115(w) x 70(d) x 20(h) mm |
Package Size | 185(w) x 105(d) x 55(h) mm |
Net Weight | 125g |
Gross Weight | 600g |
