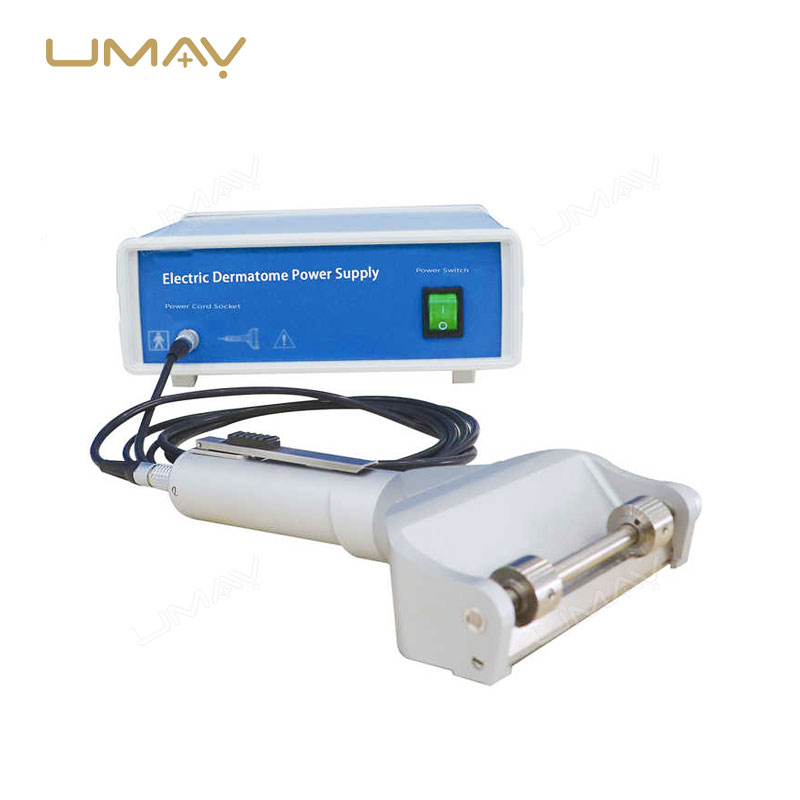

Electric Dermatome for Skin Grafting in Burn and Plastic Surgery
Quick Info.
Power Source Electric
Shelf Life 2 years
Quality Certification CE ISO
Safety standard GB/T18830-2009
Product name Electric dermatome with five skin width pedal
Certificate CE ISO
Power 220V~ 50Hz
Motor Miniature Brushless DC Motor
Motor Power 40W
Speed 0~6500RPM
Blade Imported Medical Stainless Steel
Working Mode Floor Switch/Manual Double Switch
Thickness 0.05-0.75 mm, physician can adjust micro knob on blade rack
each dial 0.05mm
- SKU NO.: UMY-SE-123
- Warranty: 1 Year
- Origin: China
The Electric Dermatome is designed for precision skin grafting in burn and plastic surgery, offering reliable and consistent results. This advanced device allows for controlled, even thickness of skin removal, improving the outcome of grafting procedures. It is ideal for use in both burn care and reconstructive surgeries, enabling surgeons to efficiently harvest grafts while minimizing patient trauma. The ergonomic design ensures ease of use, enhancing surgical workflow. With its high performance and durability, the Electric Dermatome is a trusted tool for enhancing recovery and results in skin grafting procedures.
The Specific Parameters
Main Technical Standards
|
|||||
Power
|
220V~ 50Hz
|
Motor
|
Miniature Brushless DC Motor
|
||
Motor Power
|
40W
|
Speed
|
0~6500RPM
|
||
Blade
|
Imported Medical Stainless Steel
|
Working Mode
|
Foor Switch/Manual Double Switch
|
||
Thickness
|
0.05-0.75 mm, physician can adjust micro knob on blade rack and each dial is 0.05mm
|
||||
Width
|
2.5cm
|
4.2cm
|
5.1cm
|
7.6cm
|
10.2cm
|
Skin Graft Thickness Adjustment
Adjustable range: 0–0.75 mm in increments of 0.05 mm.
Unilateral thickness adjustment button ensures high stability and eliminates the need for zero calibration.


Skin Graft Width Options
Available widths: 2.5 cm, 5.1 cm, 7.6 cm, and 10.2 cm (4 standard width plates included).
Custom width plates can be manufactured upon request to meet specific surgical requirements.
Blade Features
– Self-lubricating blade for smooth operation.
– Easy blade loading and unloading mechanism.
– Smooth reciprocating motion to prevent metal-to-metal contact and ensure precision.
