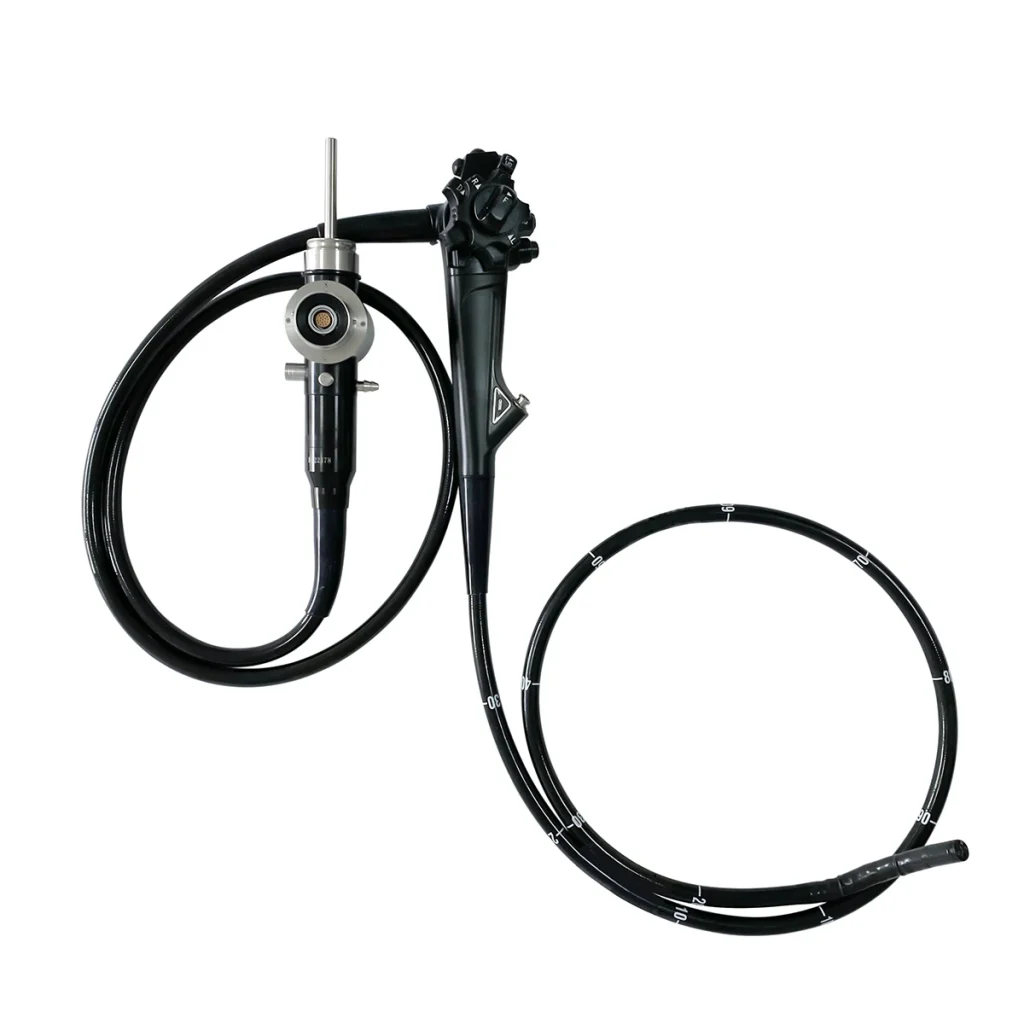

Cost-Effective Medical Video Gastroscope and Colonoscope
SKU: UMY-SE-075
Brand: Umy
MOQ: 1
Origin: China
This cost-effective medical video gastroscope and colonoscope set is designed for comprehensive gastrointestinal diagnostics and treatments. Offering high-definition imaging for precise evaluations, it supports both gastroscopy and colonoscopy procedures in hospitals and clinics. The user-friendly interface and robust design ensure reliable performance while maintaining affordability. An ideal choice for facilities seeking quality equipment at a reasonable investment.
Quick Info.
Power Source: Electricity
Warranty: 2 years, One year(free), permanent repairs (not free)
After-sale Service: Online technical support
Material: metal, Plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: None
Product name: Portable human endoscope
MOQ: 1PCS
Quality certification: ISO 13485,ISO 9001
Package size: 64*18*48cm (G.W.:5.18kgs)
Split machine: Main part and light source are splited
Warranty: 2 years, One year(free), permanent repairs (not free)
After-sale Service: Online technical support
Material: metal, Plastic
Shelf Life: 3 years
Quality Certification: ce
Instrument classification: Class II
Safety standard: None
Product name: Portable human endoscope
MOQ: 1PCS
Quality certification: ISO 13485,ISO 9001
Package size: 64*18*48cm (G.W.:5.18kgs)
Split machine: Main part and light source are splited
- SKU NO.: UMY-SE-075
- Warranty: 1 Year
- Origin: China
The Specific Parameters
|
Item
|
video Colonoscope
|
Video Gastroscope
|
|
|
Diameter of distal- end
|
Φ13.0mm
|
Φ9.2/9.8mm
|
|
|
Diameter of insert tube
|
Φ12.8mm
|
Φ9.2/9.6mm
|
|
|
Clamp aperture
|
Φ 3.2/3.7mm
|
Φ2.8mm
|
|
|
Working length
|
1350mm
|
1030 mm
|
|
|
Total length
|
1650mm
|
1330 mm
|
|
|
View of field
|
140 º
|
||
|
Depth of view
|
3-100mm
|
||
|
Resolution
|
CMOS1,000,000 Pixels high resolution
|
||
|
Tip deflection
|
up 180° down 180°L/R 160°
|
up 210° down 90° L/R 100°
|
|
|
|
Remark:We can provide OEM service, technical details can be customized.
|
||
|
Endoscope Image proccess
|
Endoscope cold light source
|
|
Lamp : LED light (80W white)
|
|
|
Power: 220-240V; 50-60HZ
|
|
|
Color temperature : ≥5300K
|
|
|
Video signal output: HDMI x2,DVI
|
|
|
Sharpness adjustment :0-10 grade
|
|
|
Withe balance : Auto white balance/ Manually white balance
|
|
|
Air pump pressure : 30-60Mpk,
|
|
|
Air flow : 4-10 L/min
|
|
|
Package size :55*46*50cm (G.W.:16kgs)
|
|
|
Main Function:
Brightness , Contrast,Tone,Saturation 0-100 grade can be adjustment . Large screen frozen, small screen display continue .Digital widescreen and picture in picture function. With USB interface support picture and video record function |
|
|
Display size
|
19”
|
|
Power Supply
|
External Power Supply 12V
|
|
Resolution
|
1280×1024
|
|
Display Ratio
|
5:4
|
|
Color
|
16.7M
|
|
Camoration Brightness
|
180±10 cd/㎡
|
|
Max.Brightness
|
400 cd/㎡
|
|
Package size
|
65*30*50cm (G.W.:10.0kgs)
|
