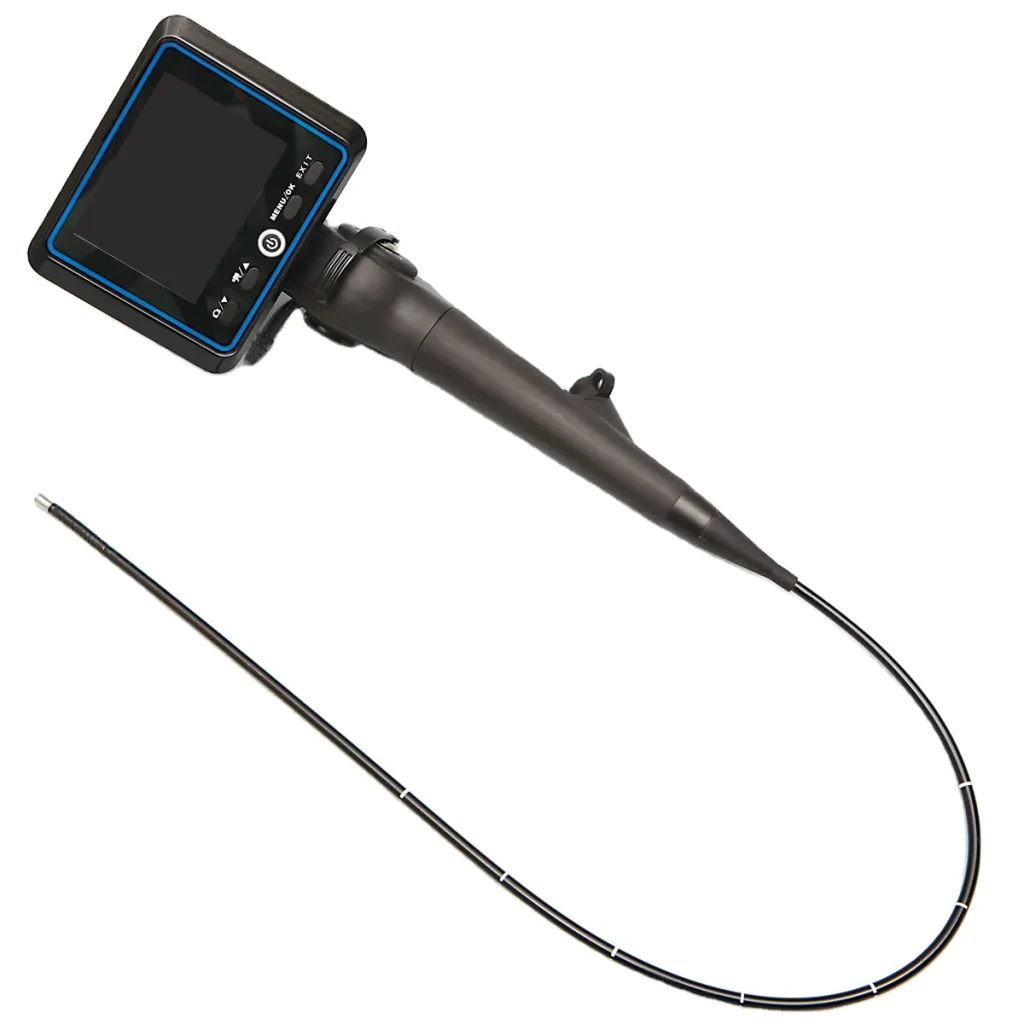

Budget-Friendly Portable Handheld Flexible Video Endoscope for Human and Veterinary Use
SKU: UMY-SE-073
Brand: Umy
MOQ: 1
Origin: China
This budget-friendly handheld flexible video endoscope is suitable for both human and animal applications, offering exceptional versatility in medical and veterinary diagnostics. Its lightweight, portable design ensures ease of use across diverse clinical environments, including emergency, hospital, and field settings. Delivering clear and accurate imaging, it supports a wide range of procedures such as gastrointestinal, respiratory, and urological examinations. An ideal choice for cost-conscious professionals seeking reliable diagnostic equipment.
Quick Info.
Properties: Endoscope
Type: Endoscope
Instrument classification: Class I
Warranty: 1 Year
After-sale Service: Online technical support
Monitor: 3.5″TFT LCD, high resolution
Controls: brightness adjusting, internal image processing;snapshot; video
Lithium battery: working time ≥1.5H
Camera pixel count: 300000 pixels (1/10″ color CMOS)
Field of view(FOV): 90° ± 10°
Depth of field(DOF): 3 mm~50 mm
View direction: forward
Articulation: U180°D130°
Working length: 300mm—-600mm
Waterproof: IP67 (cable and holder)
Type: Endoscope
Instrument classification: Class I
Warranty: 1 Year
After-sale Service: Online technical support
Monitor: 3.5″TFT LCD, high resolution
Controls: brightness adjusting, internal image processing;snapshot; video
Lithium battery: working time ≥1.5H
Camera pixel count: 300000 pixels (1/10″ color CMOS)
Field of view(FOV): 90° ± 10°
Depth of field(DOF): 3 mm~50 mm
View direction: forward
Articulation: U180°D130°
Working length: 300mm—-600mm
Waterproof: IP67 (cable and holder)
- SKU NO.: UMY-SE-073
- Warranty: 1 Year
- Origin: China
The Specific Parameters
Main Specifications:Probe
|
||
Outer diameter
|
forward view
|
φ5.8mm with working channel:2.2mmm
|
φ4.8mm with working channel:1.5mmm
|
||
φ3.8mm with working channel:0.6mmm
|
||
φ2.8mm without working channel
|
||
Camera
|
pixel count
|
300000 pixels (1/10″ color CMOS)
|
analysis
|
10.5 lp/mm (at 7mm)
|
|
Optic system
|
field of view(FOV)
|
90° ± 10°
|
depth of field(DOF)
|
3mm~50mm
|
|
view direction
|
forward
|
|
Articulation
|
UP 180 degree
|
|
Down 130 degree
|
||
illumination adjustable
|
>10000 Lux of illumination with Fiber
|
|
Insertion tube covering
|
polyurethane (match medical standard)
|
|
Working length
|
300mm—-600mm
|
|
Waterproof
|
IP67 (cable and holder)
|
|
Working Temperature
|
5~40°C
|
|
Atmosphere Pressure
|
700hpa~1060hpa
|
Base
|
||
Monitor
|
3.5″TFT LCD, high resolution
|
|
Controls
|
brightness adjusting, internal image processing;snapshot;video recording
|
|
Power supply
|
DC (battery)
|
lithium battery :working time ≥1.5H
|
charging time: 8~10 H
|
||
Memory card
|
TF card 2 G (provided) , Max 16G (option)
|
|
Memory volume
|
JPEG : 60KB; 4 hours’ video recording: 1G
|
|
USB2.0
|
for transfer data to PC
|
