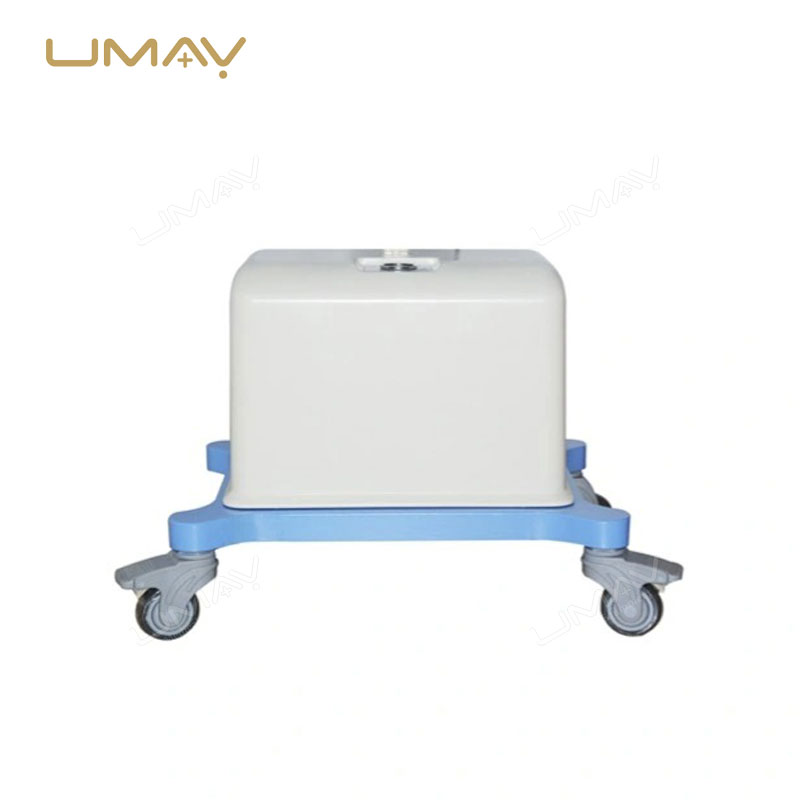

ICU Breathing Ventilator with Air Compressor
SKU: UMY-AV-VI02
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-AV-VI02
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton Package
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Mode and Display | |
| Mode | IPPV, SIPPV, SIMV, MANUAL |
| Display | 5″ SNT screen |
| Operation Method | Knob operation and touch key |
| Technical Parameters | |
| Ventilation Wave | Square wave, Deceleration wave |
| Tidal Volume | 0 ~ 2000 ml |
| Breath Frequency | 2 ~ 80 bpm |
| Inspiration Time | 0.2 ~ 5S |
| Inspiration Flow | 0 ~ 120L/min |
| Trigger Sensitivity | -2.0 ~ 2.0 kPa |
| Inspiration Pressure Limit | 1.0 ~ -5.0 kPa |
| PEEP | 0 ~ 2.0 kPa |
| Oxygen Concentration | 45 ~ 100% |
| Internal Battery | DC12V (over 4 hours) |
| Monitor Wave and Parameters | |
| Monitor Wave | P-t, V-t |
| Tidal Volume | Measurable |
| MV | Measurable |
| Breath Frequency | Measurable |
| Ppeak | Measurable |
| Trigg I | Measurable |
| Power | AC or DC |
| Oxygen Concentration | Measurable |
| Alarm Parameters and Alarm Setting | |
| Tidal Volume Upper Limit | 100 – 2000 ml |
| Tidal Volume Lower Limit | 20 – 2000 ml |
| MV Upper Limit | 2.0 ~ 60 L/min |
| MV Lower Limit | 2.0 ~ 60 L/min |
| Breath Frequency Upper Limit | 5 ~ 120 bpm |
| Breath Frequency Lower Limit | 2 ~ 60 bpm |
| Peak Pressure Upper Limit | 0.5 ~ 8.0 kPa |
| Peak Pressure Lower Limit | 0 ~ 4.0 kPa |
| Power Fault | Detectable |
| Oxygen Source Fault | Detectable |
| Oxygen Concentration Upper Limit | 21% ~ 100% |
| Oxygen Concentration Lower Limit | 21% ~ 100% |
| Apnea Alarm and Setting | 3 ~ 12S |
